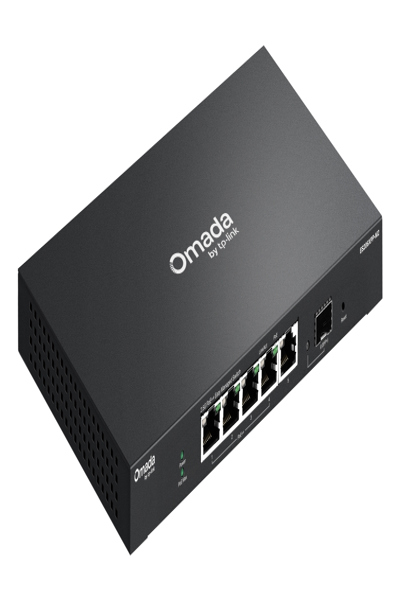

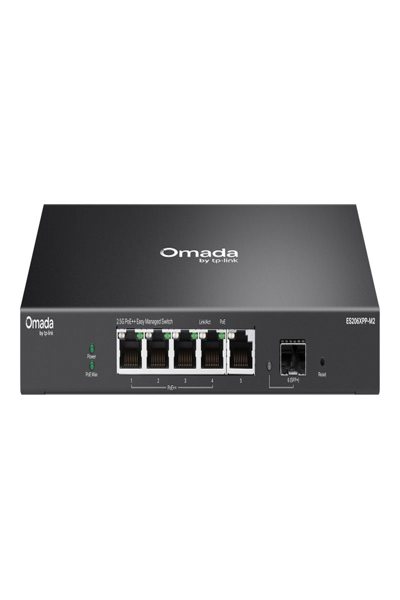

TP-LINK ES206XPP-M2 - Switch - 10 Gbps
Amount of ports: - Power over Ethernet - RJ-45 - Managed
Brand: TP-LINK
SKU: ES206XPP-M2
$320.26
Price as listed. Shipping charges calculated at checkout.
Low stock — only 1 left
Do you have any question about this product or its specs? Want to know more? Click here to contact our pre-sales consultant and make the right purchase.
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Device Type
Switch - 5 ports - Managed
Enclosure Type
Desktop, wall-mountable
Subtype
2.5 Gigabit Ethernet
Ports
5 x 10/100/1000/2.5G (PoE++) + 1 x 10 Gigabit SFP+
Power Over Ethernet (PoE)
PoE++
PoE Budget
120 W
Performance
Switching capacity: 45 Gbps
Packet forwarding rate: 33.48 Mpps
Packet buffer size: 5 Mbit
Capacity
Priority queues: 8
VLAN groups: 32
VLANs supported: 4000
MAC Address Table Size
16K entries
Jumbo Frame Support
10KB
Routing Protocol
IGMP, IGMPv2, IGMPv3
Remote Management Protocol
DHCP
Features
Reset button, fanless, metal housing, security slot (Kensington security lock compatible), loop prevention, VLAN support, port isolation, QoS, IGMP snooping, fast PoE, perpetual PoE, store and forward, 2KV Surge protection, 4KV ESD Protector (contact discharge), 6KV Surge protection, 8KV ESD Protector (air-gap discharge), cloud managed, automatic device discovery, firmware upgradable, flow control, Link Aggregation, loopback detection, One-to-Many, One-to-One, port mirroring, fast leave, WRR, bandwidth control, Broadcast Storm Control, Multicast Storm Control, Unknown Storm Control, Unicast Storm Control, Cable Diagnostics Function
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1ab (LLDP), IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Flash Memory
64 MB
Status Indicators
Link/activity, PoE max, power
Expansion / Connectivity
Interfaces
4 x 10/100/1000/2.5G RJ-45 PoE++ - 90 W
1 x 10/100/1000/2.5G RJ-45
1 x 10 Gigabit Ethernet SFP+ SFP+
Power
Power Device
External power adapter
Voltage Required
DC 53.5 V
Power Consumption Stand by
3.5 Watt
Miscellaneous
Included Accessories
4 rubber feet, power cord
MTBF
702,277 hours
Compliant Standards
Plug and Play, RoHS, FCC
Dimensions & Weight
Width
20.9 cm
Depth
12.6 cm
Height
2.6 cm
Weight
670 kg
Environmental Parameters
Min Operating Temperature
5 °C
Max Operating Temperature
40 °C
Humidity Range Operating
10 - 90% RH (non-condensing)
Min Storage Temperature
40 °C
Max Storage Temperature
70 °C
Humidity Range Storage
5 - 90% (non-condensing)
Ident
Manufacturer ID
ES206XPP-M2
EAN/UPC
1210002600965
TP-LINK ES206XPP-M2 - Switch - 10 Gbps - Amount of ports: - Power over Ethernet - RJ-45 - Managed
