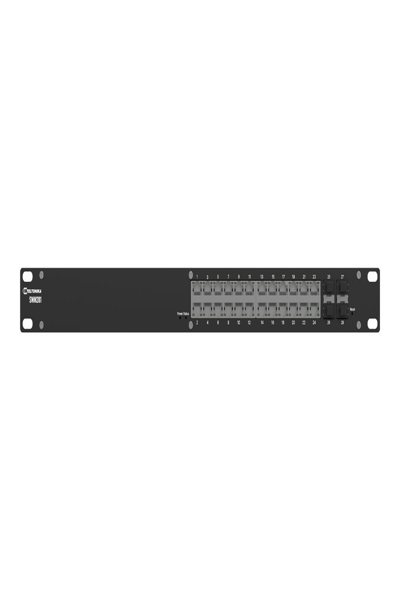

Teltonika SWM281 Switch 4 SFP SWM281000000 - Switch - 1 Gbps
Number of ports: - DHCP - IPv6 - SNMP - TCP/IP - Ethernet - RJ-45 - Managed - Rack module
Brand: Teltonika
SKU: SWM281000000
$263.88
Price as listed. Shipping charges calculated at checkout.
In stock
Do you have any question about this product or its specs? Want to know more? Click here to contact our pre-sales consultant and make the right purchase.
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Device Type
Switch - 24 ports - L2+ - Managed
Enclosure Type
Rack-mountable
Subtype
Gigabit Ethernet
Ports
24 x 10/100/1000 + 4 x Gigabit SFP
Performance
Non-blocking bandwidth: 56 Gbps
Forwarding rate: 83.33 Mpps
Capacity
Packet buffer size: 512 KB
MAC Address Table Size
8K entries
Jumbo Frame Support
10000 bytes
Routing Protocol
BGP, OSPFv2, RIP-1, RIP-2, EIGRP, static IPv4 routing, static IPv6 routing
Remote Management Protocol
IPv4, IPv6, SNMP 2, SNMP 3
Authentication Method
RADIUS, TACACS+
Features
PROFINET, Auto-MDI/MDIX support, dynamic routing, MRP, loop protection, RSTP support, STP support, DHCP server, DHCP client, port isolation, port mirroring, DHCPv6 client, PAM, 802.1x authentication, MAC address filtering, FOTA, reset button, anodised aluminium housing, EtherNet/IP enabled, EEE, port priority, DSCP prioritisation, ToS, CoS, SP, WFQ, WRR, rate limit, Storm Control, Cable Diagnostics Function, traceroute, VLAN segmentation, LLDP, Teltonika RMS, VLAN support
Compliant Standards
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az, IEEE 802.1p, IEEE 802.1x, IEEE 802.1Q
Processor
1 x Realtek Semiconductor MIPS 4Kec: 500 MHz
RAM
128 MB DDR3 SDRAM
Flash Memory
16 MB
Status Indicators
Power, status, SFP
Expansion / Connectivity
Interfaces
24 x 10/100/1000 Base-T RJ-45
4 x 1000Base-X SFP
Power
Power Device
Internal power supply
Voltage Required
AC 100-240 V (50/60 Hz)
Power Consumption Stand by
5.5 Watt
Miscellaneous
Compliant Standards
IP30, UKCA, CB, RCM, FCC, IC, RoHS, REACH
Software / System Requirements
Software Included
SwmOS
Dimensions & Weight
Width
48.3 cm
Depth
23.4 cm
Height
4.4 cm
Weight
1.853 kg
Manufacturer Warranty
Service & Support
Limited warranty - 2 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
50 °C
Humidity Range Operating
10 - 90% (non-condensing)
Ident
Manufacturer ID
SWM281000000
EAN/UPC
4779051844104
Teltonika SWM281 Switch 4 SFP SWM281000000 - Switch - 1 Gbps - Number of ports: - DHCP - IPv6 - SNMP - TCP/IP - Ethernet - RJ-45 - Managed - Rack module
