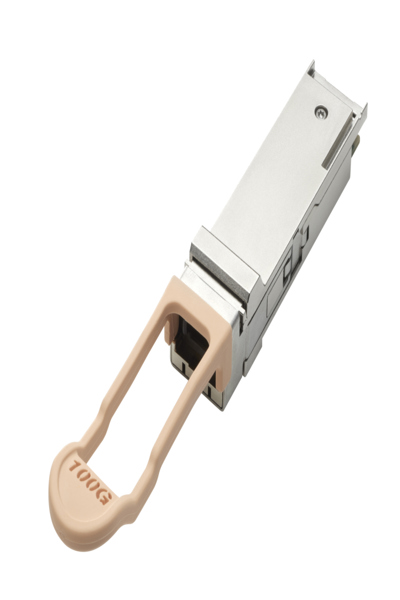

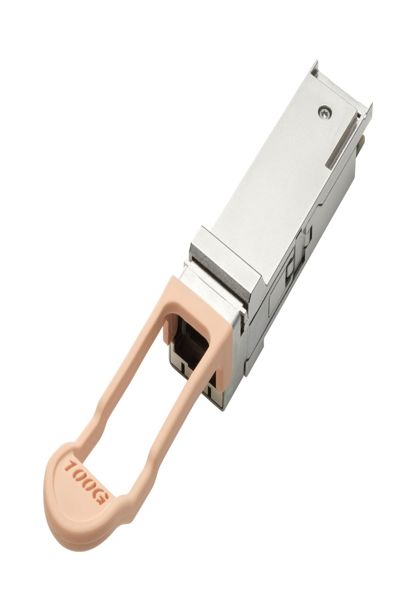

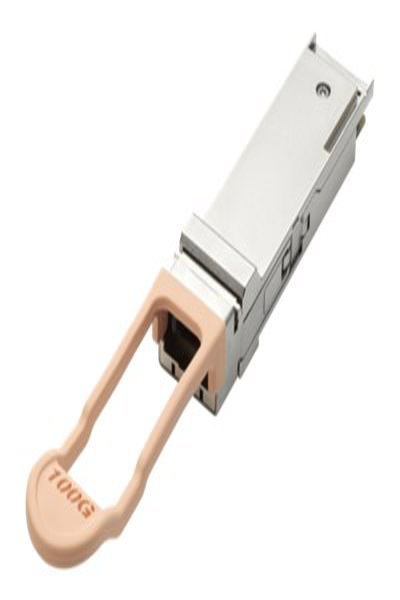

HPE QSFP28 Transceiver Module Fiber Optic Network
HPE - QSFP28 transceiver module - 100GbE - 100GBase-SR4 - MPO multi-mode - up to 100 m - 850 nm - for HPE 842QSFP28
Brand: HPE
SKU: 845966-B21
$1,846.88
Price as listed. Shipping charges calculated at checkout.
In stock
Do you have any question about this product or its specs? Want to know more? Click here to contact our pre-sales consultant and make the right purchase.
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
SFP transceiver type
Fiber optic
Maximum data transfer rate
100000 Mbit/s
Interface type
QSFP28
Power consumption (typical)
3.5 W
Width
72.7 mm
Depth
8.5 mm
Height
18.4 mm
HPE 100Gb QSFP28 MPO SR4 100m Transceiver. SFP transceiver type: Fiber optic, Maximum data transfer rate: 100000 Mbit/s, Interface type: QSFP28. Power consumption (typical): 3.5 W. Width: 72.7 mm, Depth: 8.5 mm, Height: 18.4 mm
| Estimate Gross Weight | 0.105 |
|---|
https://www.hpe.com/uk/en/product-catalog/servers/server-transceivers/pip.hpe-100gb-qsfp28-mpo-sr4-100m-transceiver.1008789462.html
What if you could deploy 100 Gb transceiver connections with an overall reduction of cost per bit? The HPE 100Gb QSFP28 Transceiver is designed to meet the increasing demand of growing bandwidth in the data center. The 100 Gb performance allows a reduction of the port density and number of hardware components required to achieve this higher speed. With reduction of cost per bit, The HPE 100Gb QSFP28 Transceiver can significantly reduce Capex and Opex spending on interconnect connections. When the fiber optic cable is attached via a standard MPO connector, up to 100m connection can be conducted via multi-mode fibers.
Features
- The HPE 100Gb QSFP28 MPO SR4 100m Transceiver has four optical lanes in each direction, allowing each to operate at 25 Gb.
- MPO connector for plugging in multi-mode fiber cables.
- Maximum link length of 70 m on OM3 and 100 m on OM4 multimode fiber at 100 Gb/s.
- Bit-error Rate (BER) lower than 10-15.
- 3.3 V power supply.
What if you could deploy 100 Gb transceiver connections with an overall reduction of cost per bit? The HPE 100Gb QSFP28 Transceiver is designed to meet the increasing demand of growing bandwidth in the data center. The 100 Gb performance allows a reduction of the port density and number of hardware components required to achieve this higher speed. With reduction of cost per bit, The HPE 100Gb QSFP28 Transceiver can significantly reduce Capex and Opex spending on interconnect connections. When the fiber optic cable is attached via a standard MPO connector, up to 100m connection can be conducted via multi-mode fibers.
Features
- The HPE 100Gb QSFP28 MPO SR4 100m Transceiver has four optical lanes in each direction, allowing each to operate at 25 Gb.
- MPO connector for plugging in multi-mode fiber cables.
- Maximum link length of 70 m on OM3 and 100 m on OM4 multimode fiber at 100 Gb/s.
- Bit-error Rate (BER) lower than 10-15.
- 3.3 V power supply.
