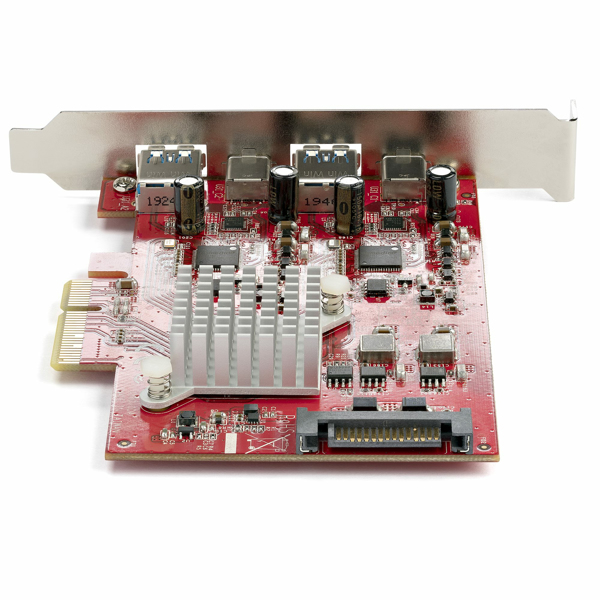

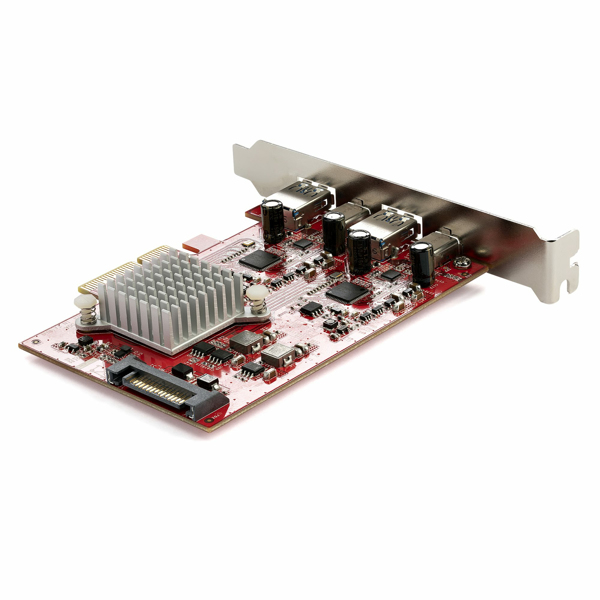

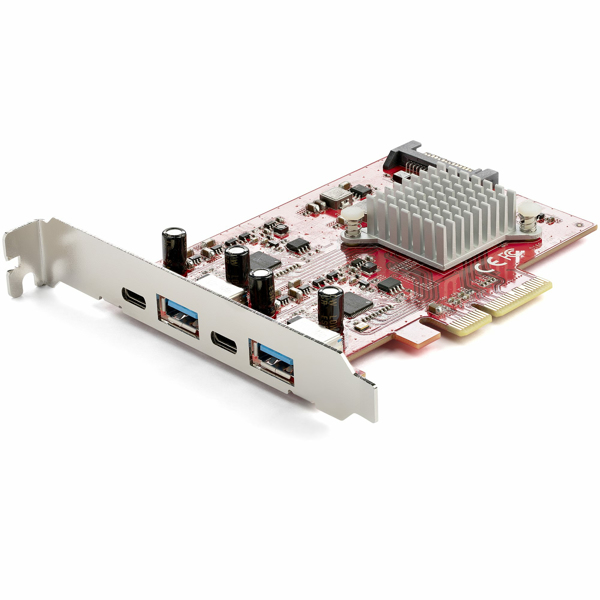

4 Port USB-C PCIe Card 10Gbps 2x USB-C 2x USB-A
PCI
Brand: StarTech.com
SKU: PEXUSB312A2C2V
$203.88
Price as listed. Shipping charges calculated at checkout.
In stock
Do you have any question about this product or its specs? Want to know more? Click here to contact our pre-sales consultant and make the right purchase.
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Host interface
PCIe
Output interface
USB 3.2 Gen 2 (3.1 Gen 2)
Expansion card standard
PCIe 3.0
Product colour
Red
Chipset
ASMedia - ASM3142, ASMedia - ASM2806
Data transfer rate (max)
10 Gbit/s
Windows operating systems supported
Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IoT Enterprise,Windows 10 Pro,Windows 10 Pro x64,Windows 10 x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Windows 7 Home Basic x64,Windows 7 Home Premium,Windows 7 Home Premium x64,Windows 7 Professional,Windows 7 Professional x64,Windows 7 Starter,Windows 7 Starter x64,Windows 7 Ultimate x64,Windows 7 x64,Windows 8,Windows 8 Enterprise,Windows 8 Enterprise x64,Windows 8 Pro,Windows 8 Pro x64,Windows 8 x64,Windows 8.1,Windows 8.1 Enterprise,Windows 8.1 Enterprise x64,Windows 8.1 Pro,Windows 8.1 Pro x64,Windows 8.1 x64
Mac operating systems supported
Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur
Server operating systems supported
Windows Server 2008 R2,Windows Server 2012 R2,Windows Server 2019
Width
85 mm
Depth
112 mm
Height
22 mm
StarTech.com 4-Port USB PCIe Card - 10Gbps USB PCI Express Expansion Card w/ 2 Controllers - 2x USB-C & 2x USB-A ports (USB 3.2/3.1 Gen 2) - USB/USB-C PCI-e Card - Full Profile. Host interface: PCIe, Output interface: USB 3.2 Gen 2 (3.1 Gen 2), Expansion card standard: PCIe 3.0. Product colour: Red. Chipset: ASMedia - ASM3142, ASMedia - ASM2806, Data transfer rate (max): 10 Gbit/s. Windows operating systems supported: Windows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10..., Mac operating systems supported: Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 11.0 Big Sur, Server operating systems supported: Windows Server 2008 R2,Windows Server 2012 R2,Windows Server 2019. Width: 85 mm, Depth: 112 mm, Height: 22 mm
| Estimate Gross Weight | 0.14 |
|---|
https://www.startech.com/en-us/PEXUSB312A2C2V

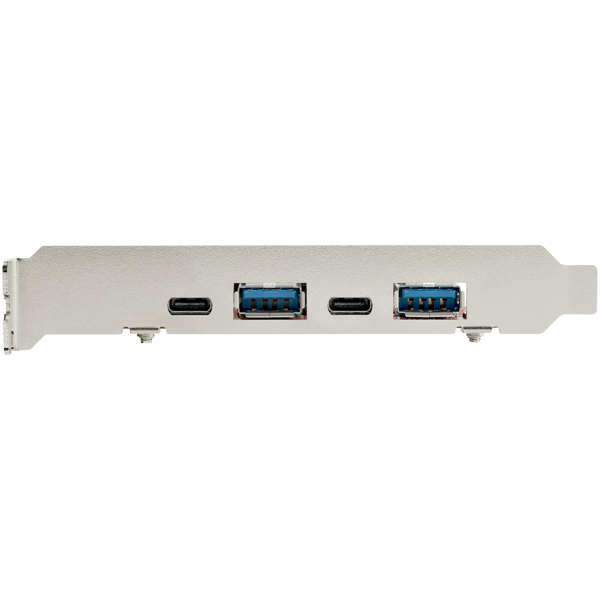

2x USB 3.2 Gen 2x1 (10Gbps) Type-A | 2x USB 3.2 Gen 2x1 (10Gbps) Type-CThe StarTech.com Advantage
2x USB 3.2 Gen 2x1 (10Gbps) Type-A | 2x USB 3.2 Gen 2x1 (10Gbps) Type-CThe StarTech.com Advantage
- HIGH PERFORMANCE: 4 Port USB PCIe card with dual ASM3142 controllers with up to 20Gbps total bandwidth across 4 ports; 2x USB-A (10Gbps) 2x USB-C (10Gbps) hub; Supports USB 3.1 Gen 2/USB 3.2 Gen 2x1
- TRANSFER SPEEDS UP TO 10Gbps: USB-A & USB-C PCIe card adapter supports Multiple INs maintaining max bandwidth with mixed speed devices; UASP support; ideal for use with USB devices & external storage like SSDs, HDDs, NVMe drives; Works w/ USB 3.1/3.0/2.0
- OPTIONAL POWER: USB PCIe expansion card with SATA power supplies supplemental power to the USB ports (when motherboard power is insufficient) providing up to 5V 3A/15W per USB Type-C port & 5V 0.9A/4.5W per USB Type-A port
- COMPATIBILITY: USB C add-on card installs in full-profile PCIe 3.0 (x4 slot) desktop/server; lower performance with PCI-e 2.0; Windows/Linux/macOS auto driver install (Windows 8 & up)
- STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; These this USB-A & USB-C combo PCI Express Host Controller card is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support
