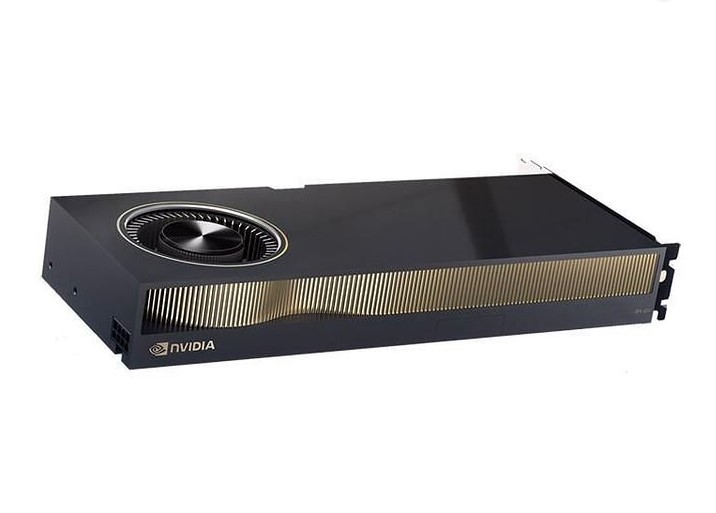

NVIDIA RTX 6000 ADA - Graphics card
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
Technical data
General
Device Type
Graphics card
Bus Type
PCI Express 4.0 x16
Graphics Engine
NVIDIA RTX 6000 Ada
CUDA Cores
18176
VR Ready
Yes
Max Resolution
7680 x 4320 at 60 Hz
Max Resolution Details
DisplayPort: 7680 x 4320 at 60 Hz (dual displays) / 5120 x 2880 at 60 Hz (four displays) / 4096 x 2160 at 120 Hz (four displays)
Max Monitors Supported
4
Interfaces Details
4 x DisplayPort
API Supported
DirectCompute, DirectX 12, OpenGL 4.6, OpenCL 3.0, CUDA 11.6, Vulkan 1.3, Shader Model 6.6
Features
Nvidia CUDA technology, Error Correcting Codes (ECC) Memory, NVIDIA Mosaic, Nvidia GPUDirect, Quadro Sync 2, NVIDIA RTX Experience, Active Thermal Solution, Nvidia Virtual GPU, full-height dual-slot, NVIDIA RTX 10 support, AV1 decode support, AV1 encode support, 568 NVIDIA third-generation Tensor Cores, 142 NVIDIA second-generation RT Cores, 91.1 Tflops peak single-precision floating point performance, 210.6 Tflops RT Core performance, 1457 Tflops tensor performance, NVIDIA GPUDirect Remote Direct Memory Access (RDMA) support, HDCP
Memory
Size
48 GB
Technology
GDDR6 SDRAM
Bus Width
384-bit
Bandwidth
960 GBps
System Requirements
OS Required
Linux, Windows 10
Miscellaneous
Power Consumption Operational
300 Watt
Software Included
NVIDIA RTX Desktop Manager
Compliant Standards
DisplayPort 1.4, HDCP 2.2
Depth
26.7 cm
Height
11.2 cm
NVIDIA RTX 6000 ADA - Graphics card - NVIDIA RTX 6000 Ada - 48 GB GDDR6 - PCIe 4.0 x16 - 4 x DisplayPort
The NVIDIA RTX 6000 Ada represents a significant leap forward in graphics card technology, designed to meet the needs of professionals in rendering, design, and computational tasks. With its 48 GB of GDDR6 SDRAM and support for resolutions up to 7680 x 4320, it delivers visual clarity and detail. The card's 18176 CUDA Cores and broad API support offer incredible computing power and flexibility for a wide range of applications. Additionally, its four DisplayPort outputs enable extensive multi-monitor configurations, supported by features like Quadro Sync 2 and NVIDIA Mosaic. The NVIDIA RTX 6000 Ada is a pivotal investment in achieving high levels of performance and productivity in professional environments.
- 48 GB GDDR6 SDRAM for high-capacity, fast memory performance
- Supports resolutions up to 7680 x 4320 for ultra-high-definition visuals
- 18176 CUDA Cores for exceptional parallel computing power
- Compatibility with multiple APIs for versatile application use
- Quadro Sync 2 and NVIDIA Mosaic for advanced multi-display setups
- Impressive visuals
Equipped with a 48 GB GDDR6 SDRAM and supporting a maximum external resolution of 7680 x 4320, this graphics card delivers stunningly clear and detailed images, making it perfect for high-end design and rendering tasks. - Advanced performance
With 18176 CUDA Cores and support for multiple APIs including CUDA 11.6, DirectX 12, and Vulkan 1.3, the NVIDIA RTX 6000 Ada offers computing power and versatility for professional applications. - Enhanced connectivity
Featuring four DisplayPort outputs with support for up to four monitors and compliance with DisplayPort 1.4 and HDCP 2.2 standards, this graphics card ensures seamless connectivity and secure, high-quality display options. - Robust design
The active thermal solution and full-height dual-slot design ensure optimal performance under heavy workloads, while Error Correcting Codes (ECC) Memory provides added reliability for critical projects. - Innovative technology
Incorporates features such as 142 second-generation RT Cores, 568 third-generation Tensor Cores, and AV1 encode and decode support, setting a new standard for graphics card capabilities.
