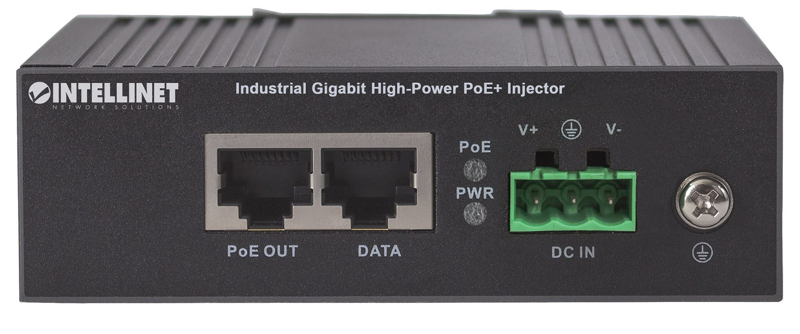

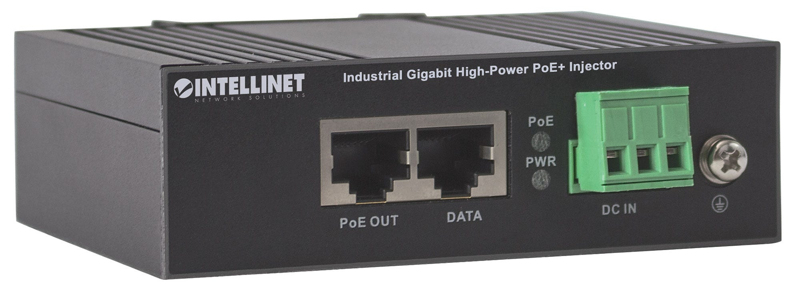

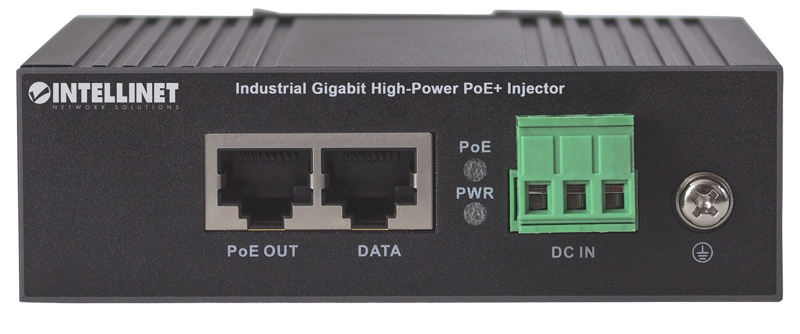

Gigabit PoE+ industrial injector 1x30W port
Injector - IEEE 802.3af/at - 30 W - 10/100/1000Base-T - 45-56 V - IP30 - metal housing Range up to 100m IEEE 802.3af and IEEE 802.3at compliant
Brand: Intellinet
SKU: 561365
$143.88
Price as listed. Shipping charges calculated at checkout.
In stock
Do you have any question about this product or its specs? Want to know more? Click here to contact our pre-sales consultant and make the right purchase.
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Ethernet interface type
Gigabit Ethernet
Ethernet LAN data rates
10,100,1000 Mbit/s
Networking standards
IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u
Product colour
Black
LED indicators
PoE, Power
Certification
FCC Class A Part 15B CE
Power over Ethernet (PoE)
Y
Power over Ethernet (PoE) voltage
56 V
Output power
30 W
Input voltage
45 – 56 V
Width
32 mm
Depth
78 mm
Height
103 mm
Number of products included
1 pc(s)
Intellinet Industrial Gigabit High-Power PoE+ Injector, 1 x 30 W Port, IEEE 802.3at/af Power over Ethernet (PoE+/PoE), Metal Housing. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u. Product colour: Black, LED indicators: PoE, Power, Certification: FCC Class A Part 15B CE. Power over Ethernet (PoE) voltage: 56 V, Output power: 30 W, Input voltage: 45 – 56. Width: 32 mm, Depth: 78 mm, Height: 103 mm. Number of products included: 1 pc(s)
| Estimate Gross Weight | 0.3 |
|---|
https://intellinetnetwork.eu/catalogsearch/result/?q=561365
Get power and data over your existing LAN cable._x000D_
_x000D_
The Intellinet Network Solutions Industrial Gigabit High-Power PoE+ Injector connects your IEEE 802.3af/at-compliant products to a non-PoE LAN switch port. The injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered device (PD) to a switch. The device has an output power rating of up to 30 watts, enough for most of the common PoE devices._x000D_
_x000D_
Reduce Wiring Costs_x000D_
_x000D_
This smart solution avoids the need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing LAN cabling to deliver DC power as well as transfer data.
Get power and data over your existing LAN cable._x000D_
_x000D_
The Intellinet Network Solutions Industrial Gigabit High-Power PoE+ Injector connects your IEEE 802.3af/at-compliant products to a non-PoE LAN switch port. The injector can be used to connect a wireless access point, IP phone, network camera or any IEEE 802.3af/at-powered device (PD) to a switch. The device has an output power rating of up to 30 watts, enough for most of the common PoE devices._x000D_
_x000D_
Reduce Wiring Costs_x000D_
_x000D_
This smart solution avoids the need to run AC power lines for your wireless access point, network camera or IP phone. Simply connect the PoE Injector to the LAN switch port, and use the existing LAN cabling to deliver DC power as well as transfer data.
- Full IEEE802.3af, IEEE802.3at compliance
- ESD protection level of 6 kV
- DCIN port surge-protection level of 8/20 ┬╡s, DM/CM 3 kA
- RJ45 port Surge protection level 10/700 ┬╡s, DM/CM 6 kV
- Wide operating temperature: -40 ΓÇô 75? (-40 ΓÇô 167┬░F)
- Three-year warranty
- Up to 30 W of power on two pairs
- Auto-detection of any IEEE802.3af or IEEE802.3at powered device (PD)
- Supports 10/100/1000Base-T applications
- LED indicators for power input and PoE output
- Supports distance up to 100 m (330 ft.)
- DC input 45 ΓÇô 56 V

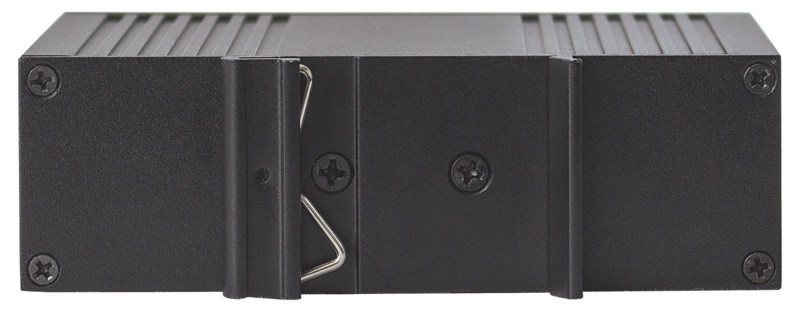

- Option for DIN-rail installation
- IP30 slim-type metal case
