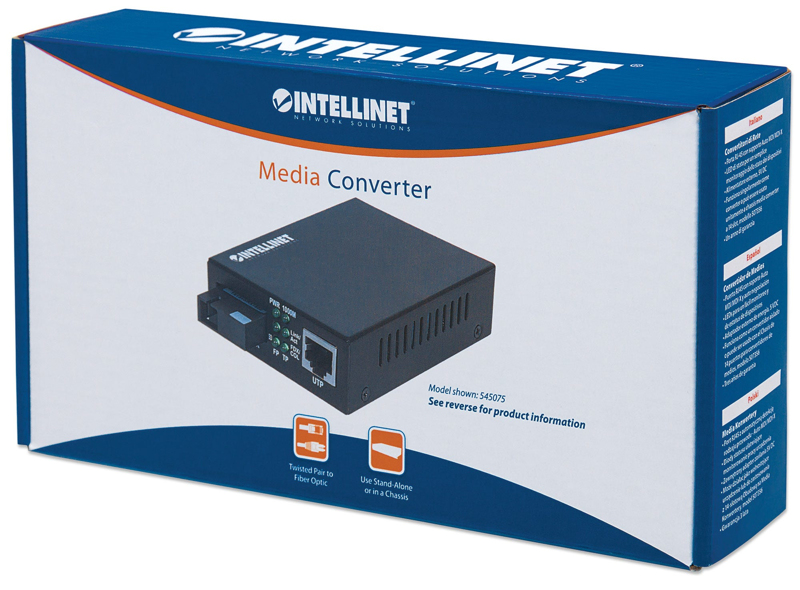

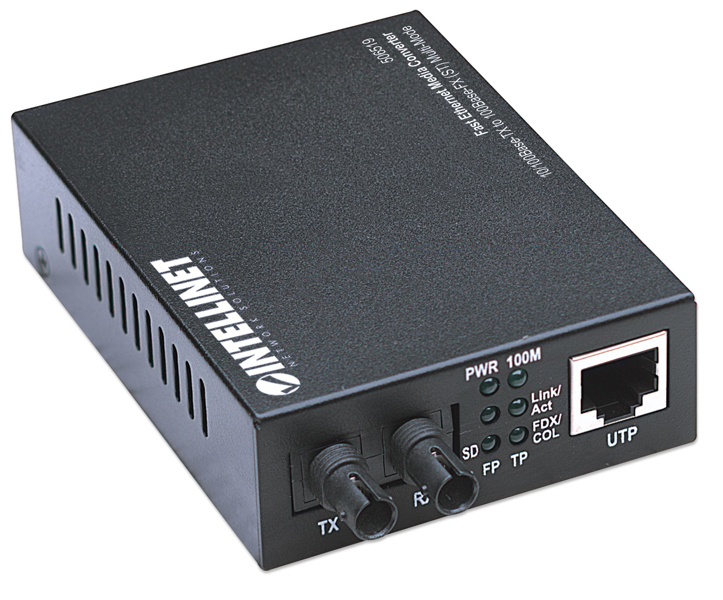

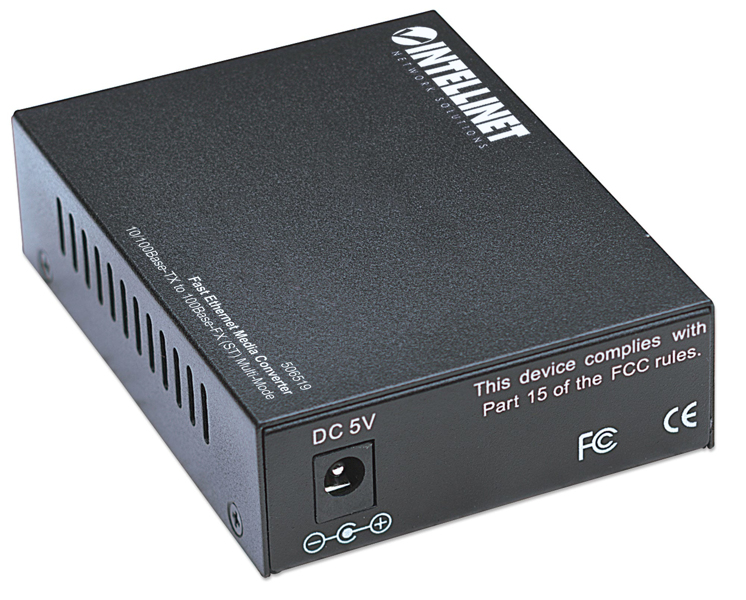

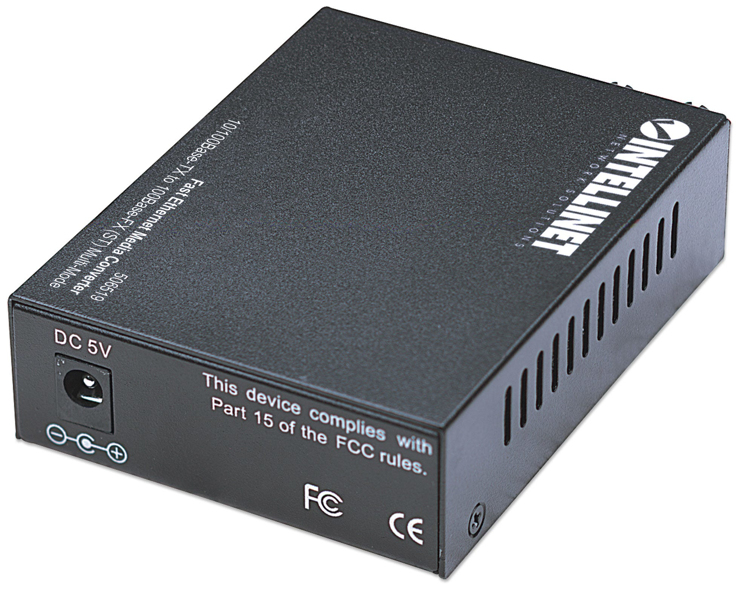

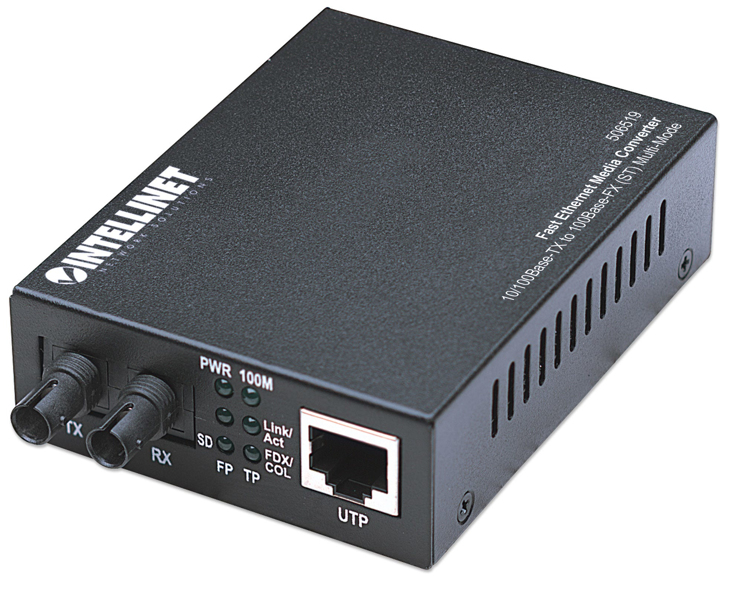

506519 - Media converter Fiber Optic - 0.1 Gbps
Copper Wire - Fiber Optic - 0.1 Gbps - 10Base-T, 100Base-FX, 100Base-TX - external - 1310 nm (506519) - duplex - Ethernet - RJ-45 - MDI Port Detection - External - 3 U
Brand: Intellinet
SKU: 506519
$95.88
Price as listed. Shipping charges calculated at checkout.
In stock
Do you have any question about this product or its specs? Want to know more? Click here to contact our pre-sales consultant and make the right purchase.
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Maximum data transfer rate
100 Mbit/s
Networking standards
IEEE 802.3,IEEE 802.3u
Ethernet interface type
Fast Ethernet
Fiber optic connector
ST
Connectivity technology
Wired
Maximum transfer distance
2000 m
Wavelength
1310 nm
Fiber mode structure
Multi-mode
LED indicators
LAN, Link, Power
Product colour
Black
Housing material
Metal
Input current
1 A
Output voltage
5 V
Power consumption (max)
2.5 W
Intellinet Fast Ethernet Media Converter, 10/100Base-Tx to 100Base-Fx (ST) Multi-Mode, 2 km (1.24 mi) (Euro 2-pin plug). Maximum data transfer rate: 100 Mbit/s, Networking standards: IEEE 802.3, IEEE 802.3u, Ethernet interface type: Fast Ethernet. Fiber optic connector: ST, Connectivity technology: Wired. Maximum transfer distance: 2000 m, Wavelength: 1310 nm, Fiber mode structure: Multi-mode. LED indicators: LAN, Link, Power, Product colour: Black, Housing material: Metal. Input current: 1 A, Output voltage: 5 V, Power consumption (max): 2.5 W
| Estimate Gross Weight | 0.5 |
|---|
https://intellinetnetwork.eu/catalogsearch/result/?q=506519
The Intellinet Network Solutions Fast Ethernet Media Converter was specifically designed to offer the network designer a device for migration from copper-based Ethernet to Fibre Ethernet. Now migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network so the network performs exactly the way it did before - only now it can support both copper and fibre mediums.
Expands the Size of an Existing Network
Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers.
Enhances the Distance between Networking Devices
Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device.
Cabling Flexibility
Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19"; rack-mountable chassis.
The Intellinet Network Solutions Fast Ethernet Media Converter was specifically designed to offer the network designer a device for migration from copper-based Ethernet to Fibre Ethernet. Now migration or expansion of existing networks can be achieved with minimum cost and complexity. The converter is completely transparent to the network so the network performs exactly the way it did before - only now it can support both copper and fibre mediums.
Expands the Size of an Existing Network
Provides fibre connectivity to Ethernet segments, allowing for even further networking expansion between extended workgroups. Also provides building-to-building connectivity without the need for the cost and disruption associated with the installation of additional routers.
Enhances the Distance between Networking Devices
Connecting the converter to fibre segments can further extend distances between networking nodes. This can be achieved by direct connection between the converter and a fibre-based node or networking device.
Cabling Flexibility
Network managers can install fibre cabling anywhere within a network without changing the arrangement of copper-based Ethernet. The compact size of the converter allows it to be easily deployed in any narrow desktop location or to be used in a wall-mount installation. Several converters can be simultaneously installed into a 19"; rack-mountable chassis.
- Data transfer rate: 100 Mbps
- Functions as a stand-alone converter or can be used with the 14-slot media converter chassis, model 507356
- Three-Year Warranty
- One 10/100Base-TX RJ45 port, maximum distance 100 m / 300 ft.
- RJ45 port with Auto MDI/MDI-X support and auto-negotiation
- One 100Base-FX multi-mode Fibre ST duplex port
- Fibre distance support: up to 2 km / 1.24 mi (62.5/125 or 50/125 ┬╡m cable)
- Wavelength: 1310 nm
- Flow control
- Status LEDs for power and Link/TX for both ports
- External power adapter, 5 V DC
