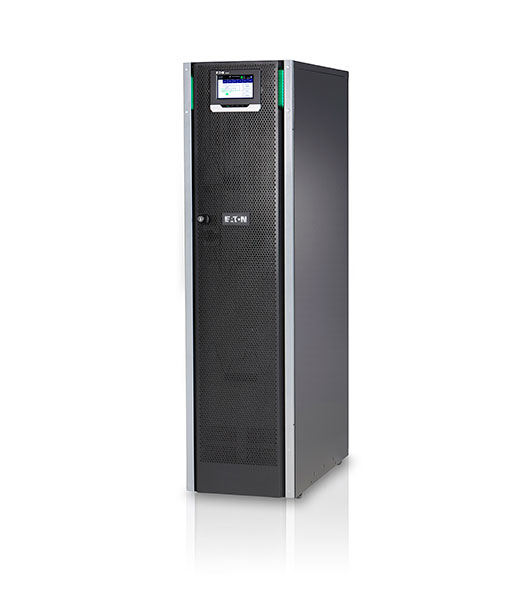

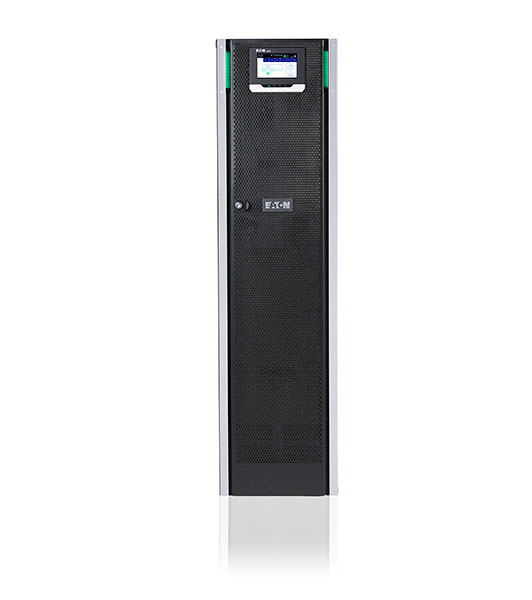

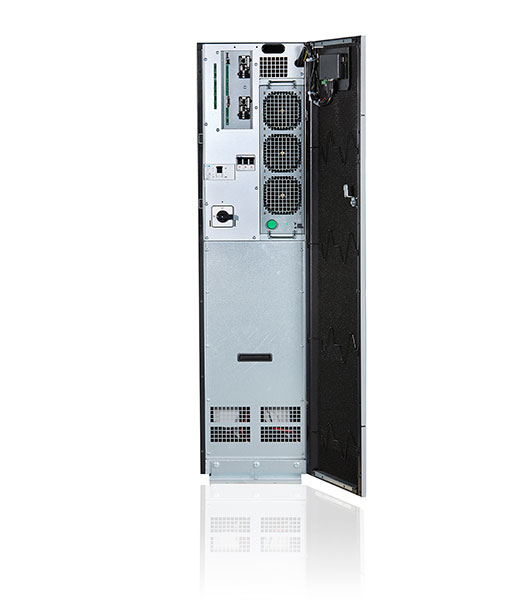

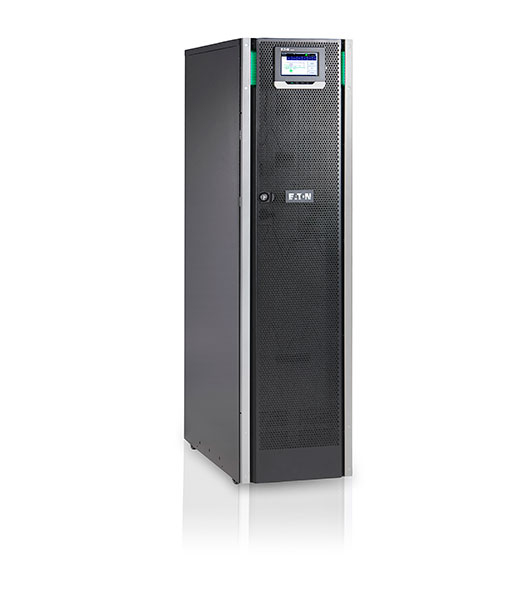

Eaton 93PS - Double-conversion (Online) - 10000 VA - 10000 W - 220 V - 415 V - 50/60 Hz
10kW (10kW) - 220 - 415V - 1x9Ah - Double conversion - 54 dB - IP20
Brand: Eaton Electric GmbH
SKU: 93PS10MBSI
$9,455.88
Price as listed. Shipping charges calculated at checkout.
In stock
Do you have any question about this product or its specs? Want to know more? Click here to contact our pre-sales consultant and make the right purchase.
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
UPS topology
Double-conversion (Online)
Output power
10000 W
Output power capacity
10 kVA
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
9 Ah
Battery voltage
12 V
Form factor
Tower
Product colour
Black
Display type
LCD
Width
335 mm
Depth
750 mm
Height
950 mm
Eaton 93PS. UPS topology: Double-conversion (Online), Output power capacity: 10 kVA, Output power: 10000 W. Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 12 V. Form factor: Tower, Product colour: Black, Display type: LCD. Width: 335 mm, Depth: 750 mm, Height: 950 mm
| Estimate Gross Weight | 165.0 |
|---|
https://powerquality.eaton.com/Products-services/Backup-Power-UPS/93PS.aspx?GUID=2CBBDCDE-AEFC-4CE1-A083-841190081676
The Eaton 93PS provides the lowest Total Cost of Ownership and maximum availability in its power range. Providing top of the line efficiency and resiliency, it’s the perfect choice for small data centers and mission critical applications.
Lowest Total Cost of Ownership (TCO)
Efficiency
- Above 96% efficiency in double conversion mode
- Up to 98,8% efficiency with Energy Saver System
Inherent redundancy
- Inherent redundancy – possibility for internal redundancy with common or separate battery configuration
Smallest footprint in the market
- The 93PS provides significantly more in a smaller package, with a footprint of only 0,25 m² for the smaller frame (8-20kW) and 0,36 m² for the large frame (8-40kW)
Scalability
- Scalable architecture and ‘Pay as you grow’ capability to minimize Capital Expenditure
- Paralleling of up to 8 units
Maximum Availability
Hot Swap and Hot Scalable
- A module can be replaced while the other continues protecting the load (concurrent maintenance)
- A module can be added while the other continues protecting the load (hot scalable)
- Individual battery strings can be serviced while other strings are supporting the load
Super-sized static switch
- Optional super-sized Static Switch to enhance the selectivity of the overall electrical installation
Safety
- Equipped with an ultra-rapid fuse in the Static Switch – ensuring safety in all scenarios
- Equipped with a backfeed contactor – no need for additional instalments
Cloud & Virtualization ready
- The 93PS and Eaton’s Intelligent Power Manager software suite takes the resiliency of the system to the next level by bridging the electrical and IT infrastructure
- IT and electrical infrastructure management from a “Single pane of glassâ€
- Load shedding – 50% drop in load equates to 250% more runtime!
The Eaton 93PS provides the lowest Total Cost of Ownership and maximum availability in its power range. Providing top of the line efficiency and resiliency, it’s the perfect choice for small data centers and mission critical applications.
Lowest Total Cost of Ownership (TCO)
Efficiency
- Above 96% efficiency in double conversion mode
- Up to 98,8% efficiency with Energy Saver System
Inherent redundancy
- Inherent redundancy – possibility for internal redundancy with common or separate battery configuration
Smallest footprint in the market
- The 93PS provides significantly more in a smaller package, with a footprint of only 0,25 m² for the smaller frame (8-20kW) and 0,36 m² for the large frame (8-40kW)
Scalability
- Scalable architecture and ‘Pay as you grow’ capability to minimize Capital Expenditure
- Paralleling of up to 8 units
Maximum Availability
Hot Swap and Hot Scalable
- A module can be replaced while the other continues protecting the load (concurrent maintenance)
- A module can be added while the other continues protecting the load (hot scalable)
- Individual battery strings can be serviced while other strings are supporting the load
Super-sized static switch
- Optional super-sized Static Switch to enhance the selectivity of the overall electrical installation
Safety
- Equipped with an ultra-rapid fuse in the Static Switch – ensuring safety in all scenarios
- Equipped with a backfeed contactor – no need for additional instalments
Cloud & Virtualization ready
- The 93PS and Eaton’s Intelligent Power Manager software suite takes the resiliency of the system to the next level by bridging the electrical and IT infrastructure
- IT and electrical infrastructure management from a “Single pane of glassâ€
- Load shedding – 50% drop in load equates to 250% more runtime!
