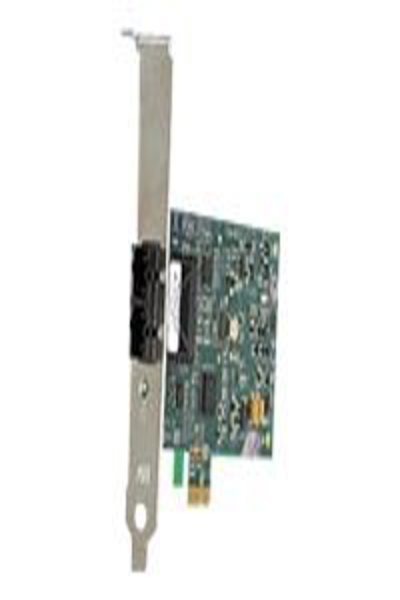

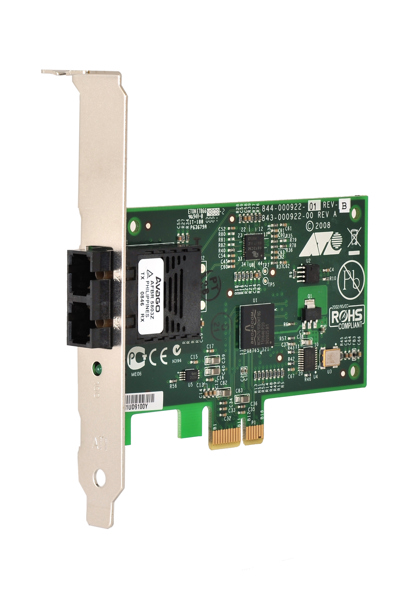

Allied Telesis AT-2712FX - Network adapter
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Internal
Y
Connectivity technology
Wired
Host interface
PCI Express
Interface
Ethernet
Maximum data transfer rate
100 Mbit/s
Allied Telesis AT-2712FX. Internal. Connectivity technology: Wired, Host interface: PCI Express, Interface: Ethernet. Maximum data transfer rate: 100 Mbit/s
The AT-2712FX network interface card is an ideal fit for fiber to the desktop networks that depend on secure and reliable systems. With a small form factor PCIe x1 bus the AT-2712FX is an ideal fit for government, education or other networks dependent on highly secure capabilities.
- Advanced centralized power management
- Secure data transmission
- NDIS 6 IPSec task offload compliant
- 32 security associations
- DASH manageability complaint with v1.1 as defined by the desktop and mobile workgroup
- IPv4 and IPv6 Large Send Offload and Checksum Offload (LSO/TCO)
- Wake on LAN (WoL) support meeting ACPI requirements
- Statistics for SNMP MIB II
- Secure connectivity through fiber
Allied Telesis'AT-2712FX card is designed to provide desktop computers with network connections through a high-speed multi-mode fiber-optic link with and SC or ST interface. - Secure encrypted data transmission
IP Security (IPSec) is a suite of protocols for securing Internet Protocol (IP) communications by authenticating and/or encrypting each IP packet in a data stream. The cryptographic algorithms that are used in IPSec operation are computationally intensive, which can overwhelm the host CPU at high network speeds. The AT-2712FX implements hardware that performs these computationally intensive cryptographic algorithms, which is known as IPSec task offload v2. The AT-2712FX supports the transport mode of IPSec Authentication Header (AH) and Encapsulation Security Payload (ESP) protocols for end-to-end security of packet traffic. Simultaneous AH and ESP task offload is also supported for up to 32 Security Associations (SA). - DASH
The Desktop and mobile Architecture for System Hardware (DASH) is a DMTF management initiative that represents a suite of specifications which standardize the manageability interfaces for mobile and desktop hardware. The DASH suite of specifications defines the interfaces for management in the form of protocols and profiles for representing mobile and desktop hardware. Fundamental to the DASH is the underlying goal to unify the experience achieved through out-of-band mechanisms with those available via the operating system.
| Estimate Gross Weight | 0.095 |
|---|
The AT-2712FX/SC Network Interface Card is an ideal fit for fiber to the desktop networks that depend on secure and reliable systems. With a small form factor PCIe x 1 Bus the AT-2712FX is an ideal fit for government, education or other networks dependent on highly secure capabilities.
- Advanced centralized power management
- NDIS 6 IPSec task offload compliant (Vista Logo Compliant)
- 32 security associations
- DASH manageability complaint with v1.1 as defined by the Desktop and Mobile Workgroup
- IPv4 and IPv6 Large Send Offload and Checksum Offload (LSO/TCO)
- Wake on LAN (WoL) support meeting ACPI requirements
- Statistics for SNMP MIB II
- Broadcom TruManageâ„¢: Allows remote management of PC when powered on and/or off
