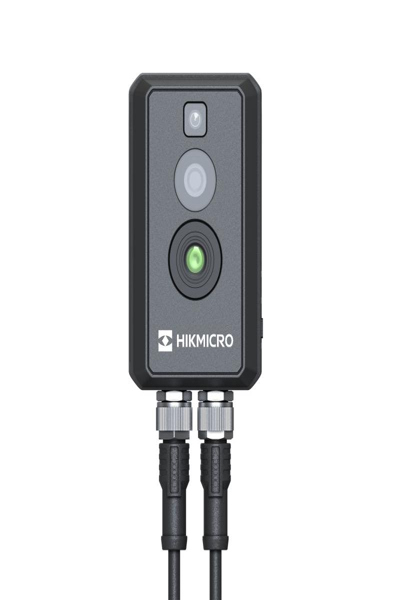

Hikvision HM-TD3028T-2/Q B Thermal Cube
Digital Camera
Brand: Hikvision
SKU: HM-TD3028T-2/Q(B)
$1,439.88
Price as listed. Shipping charges calculated at checkout.
In stock
Do you have any question about this product or its specs? Want to know more? Click here to contact our pre-sales consultant and make the right purchase.
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
Power
Power source type
DC
Power consumption (max)
5 W
DC output voltage
12
Performance
Type
IP security camera
Placement supported
Indoor & outdoor
Connectivity technology
Wired
Thermal module
Yes
Number of languages
33
Languages support
Multi
Thermal sensitivity (NETD)
40 mK
IFOV (spatial resolution)
5.71 mRad
Network
Ethernet LAN
Yes
Wi-Fi
No
Bluetooth
Yes
Ethernet interface type
Gigabit Ethernet
Networking standards
IEEE 802.3af
Supported network protocols
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Packaging content
Number of cameras
1
Design
Mounting type
Wall
Product colour
Black
International Protection (IP) code
IP67
Lens system
Number of lenses
1
Zoom capability
Yes
Digital zoom
4 x
Maximum aperture number
2.2
Fixed focal length
1.4 mm
Fixed focal length (thermal module)
2.1 mm
Aperture number (thermal module)
1
Image sensor
Sensor type
CMOS
Number of sensors
2
Optical sensor size
25.4 / 5 mm
Sensor type (thermal module)
Vanadium Oxide Uncooled Focal Plane Arrays
Effective sensor resolution (thermal module)
256 x 192 pixels
Video
Maximum resolution
2688 x 1520 pixels
Video compression formats
H.264, H.265, M-JPEG
Frame rate
25 fps
Noise reduction
Yes
Noise reduction technology
3D noise reduction
Gain control type
Auto
Image quality adjustment
Brightness, Contrast, Sharpness
Bit rate
256 Kbps - 16 Mbps
Ports & interfaces
Ethernet LAN (RJ-45) ports
1
RS-485 ports
1
Management features
Web browser
Yes
Reset button
Yes
Camera
Minimum illumination
0 lx
Vertical field of view (thermal module)
64.2 °
Horizontal field of view (thermal module)
90 °
Lens viewing angle, horizontal
96.9 °
Lens viewing angle, vertical
77.2 °
Camera pixel size
12 µm
Response waveband
8 - 14 µm
Security
Alarm output channels
2
Temperature sensor
Yes
Temperature measurement range
20 - 550 °C
Temperature measurement accuracy
2 °C
Password protection
Yes
Active tampering alarm
Yes
IP address filtering
Yes
Privacy protection
Yes
Heartbeat
Yes
Mirror
Yes
Digital watermark
Yes
Operational conditions
Operating temperature (T-T)
20 - 60 °C
Operating relative humidity (H-H)
0 - 95 %
Weight & dimensions
Width
56 mm
Depth
38.9 mm
Height
111.2 mm
Weight
335 g
Ident
Manufacturer ID
HM-TD3028T-2/Q(B)
EAN/UPC
6974004645014
Hikvision HM-TD3028T-2/Q B Thermal Cube - Digital Camera
