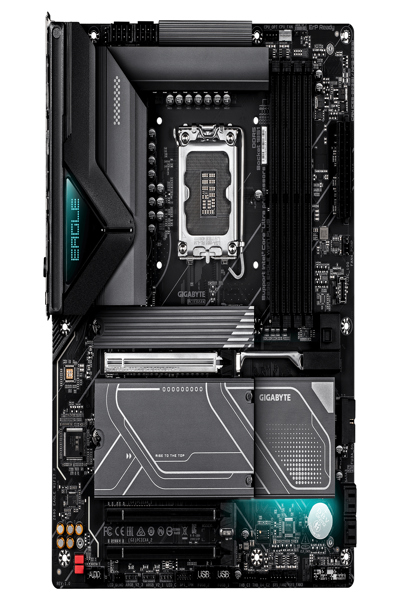

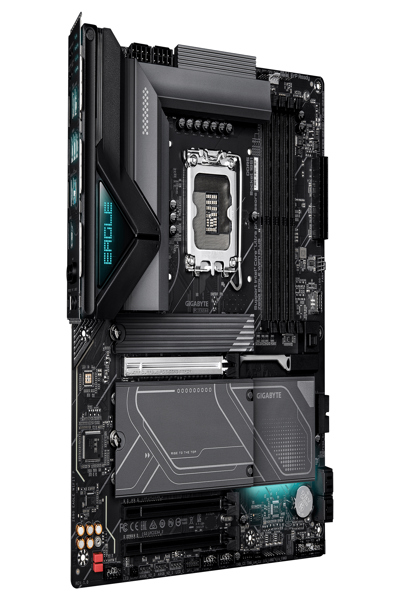

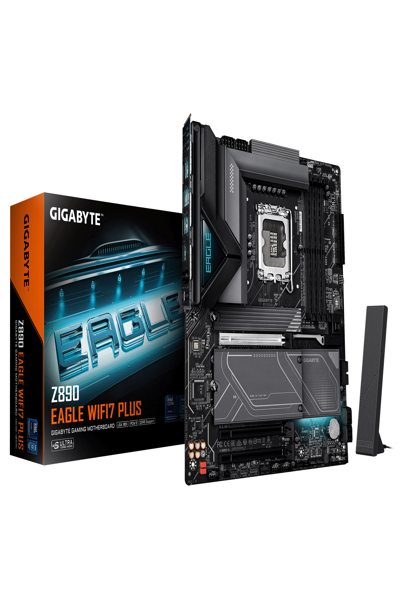

Gigabyte Motherboard Gigabyte Z890 EAGLE WIFI7 PLUS
Brand: Gigabyte
SKU: Z890 EAGLE WIFI7 P
$335.88
Price as listed. Shipping charges calculated at checkout.
In stock
Do you have any question about this product or its specs? Want to know more? Click here to contact our pre-sales consultant and make the right purchase.
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
Processor
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Compatible processor series
Intel Core Ultra (Series 2)
Supported processor sockets
LGA 1851
Memory
Supported memory types
DDR5-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC ?ompatibility
Non-ECC
Supported memory clock speed (max)
9466 MHz
Maximum internal memory
256 GB
Unbuffered memory
Yes
Maximum internal memory per slot
64 GB
Features
Component for
PC
Motherboard form factor
ATX
Motherboard chipset family
Intel
Motherboard chipset
Intel Z890
Audio chip
Realtek ALC1220
Audio output channels
7.1 channels
Product colour
Black
PC health monitoring
Fan, Temperature, Voltage, Water cooling
Cooling type
Passive
Power source type
ATX
Windows operating systems supported
Windows 11 x64
Internal I/O
USB 2.0 connectors
2
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of SATA III connectors
4
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
2
Number of chassis fan connectors
4
EPS power connector (8-pin)
Yes
Number of EPS power connectors (8-pin)
2
TPM connector
Yes
Thunderbolt headers
2
12V power connector
Yes
Number of water pump connectors
2
RGB LED pin header
Yes
Number of RGB LED pin headers
4

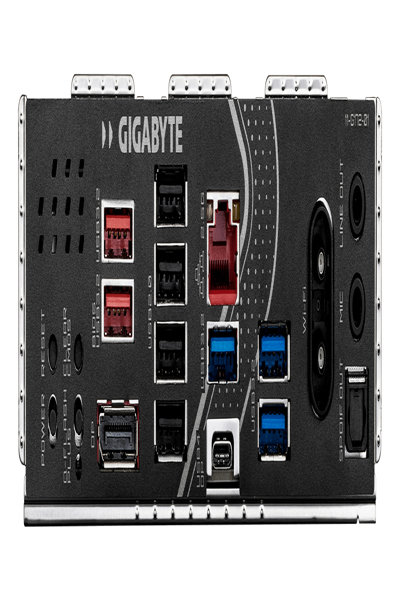

Rear panel I/O ports
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
0
USB4 Gen 3x2 ports quantity
1
Ethernet LAN (RJ-45) ports
1
VGA (D-Sub) ports quantity
0
HDMI ports quantity
0
DVI-D ports quantity
0
DisplayPorts quantity
1
DisplayPort version
2.1
Headphone outputs
1
Line-in
Yes
S/PDIF out port
Yes
Digital audio optical out
1
Thunderbolt ports quantity
2
WiFi-AP antenna jack
2
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of HDDs supported
8
Number of storage drives supported
4
RAID support
Yes
RAID levels
0, 1, 5, 10
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
LAN controller
Realtek RTL8125D
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
WLAN controller model
Intel WIFI 7 BE202NGW M
Bluetooth
Yes
Bluetooth version
5.4
BIOS
BIOS type
UEFI AMI
BIOS memory size
512 Mbit
ACPI version
5.0
Clear CMOS jumper
Yes
Clear CMOS button
Yes
Desktop Management Interface (DMI) version
2.7
System Management BIOS (SMBIOS) version
2.7
Expansion slots
PCI Express x16 (Gen 4.x) slots
2
PCI Express x16 (Gen 5.x) slots
1
Number of M.2 (M) slots
4
1st M.2 largest key size
25110
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
22110
2nd M.2 highest PCI Express generation
4.0
3rd M.2 largest key size
22110
3rd M.2 highest PCI Express generation
4.0
4th M.2 largest key size
22110
4th M.2 highest PCI Express generation
4.0
Graphics
Parallel processing technology support
Not supported
Maximum resolution
3840 x 2160 pixels
DirectX version
12.0
Weight & dimensions
Width
305 mm
Depth
244 mm
Height
35 mm
Other features
Weight
2.51 kg
Logistics data
Country of origin
China
Products per shipping (inner) case
1 pc(s)
Packaging content
Batteries included
Yes
Antenna included
Yes
Screws included
Yes
Bundled software
Norton® Internet Security (OEM version)
Technical details
Warranty period
3 year(s)
Battery
Battery weight
3 g
Lithium weight per battery
0.0700 g
Number of battery cells
1
Battery capacity
220 mAh
Battery technology
Lithium-Manganese Dioxide (LiMnO2)
Battery type
CR2032
Packaging data
Package width
345 mm
Package depth
294 mm
Package height
80 mm
Package weight
2.92 kg
Ident
Manufacturer ID
Z890 EAGLE WIFI7 P
EAN/UPC
4719331880842
Gigabyte Motherboard Gigabyte Z890 EAGLE WIFI7 PLUS
