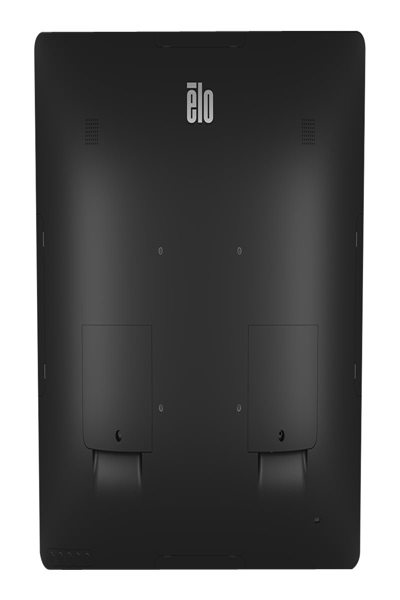

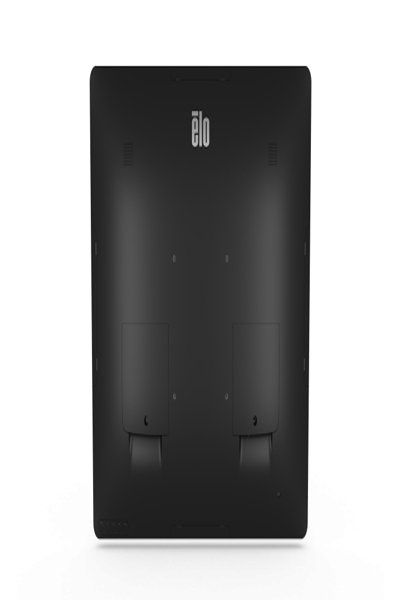

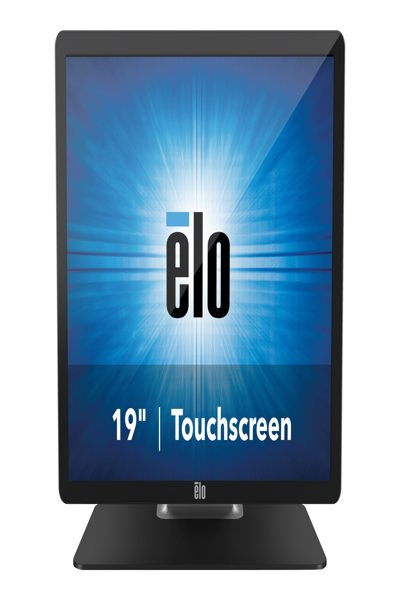

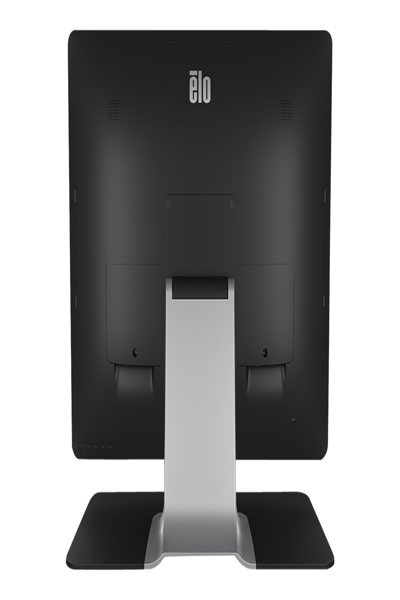

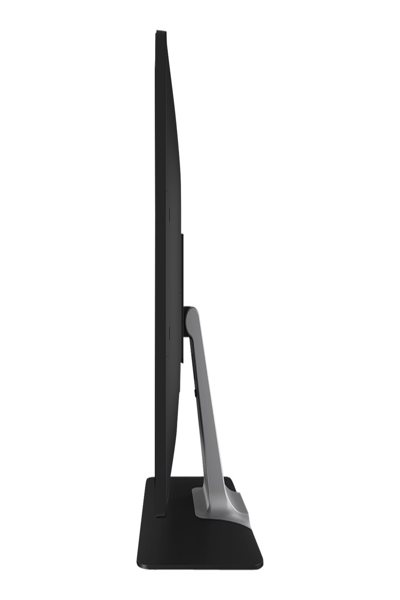

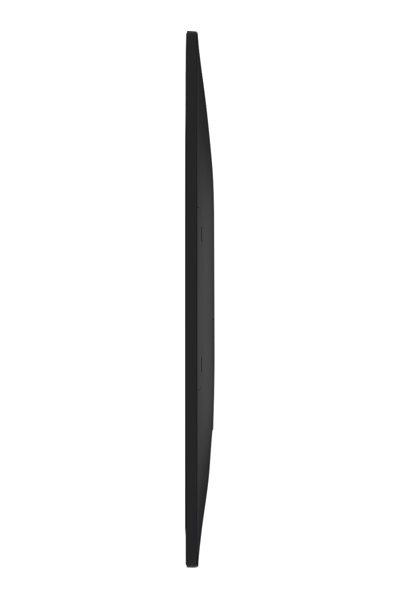

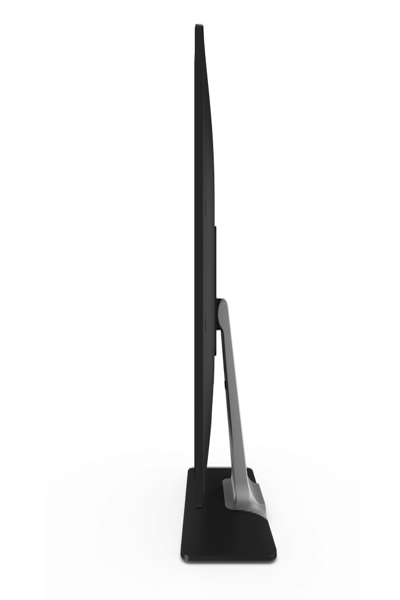

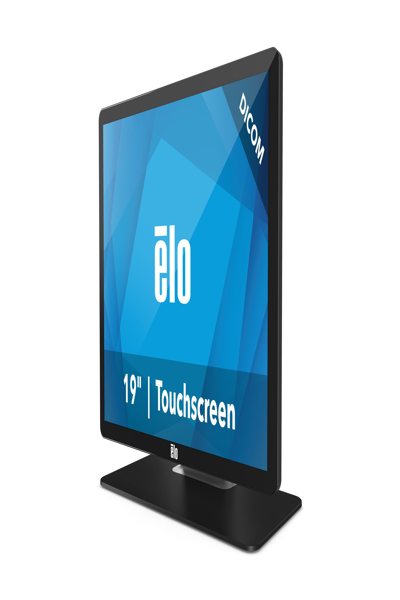

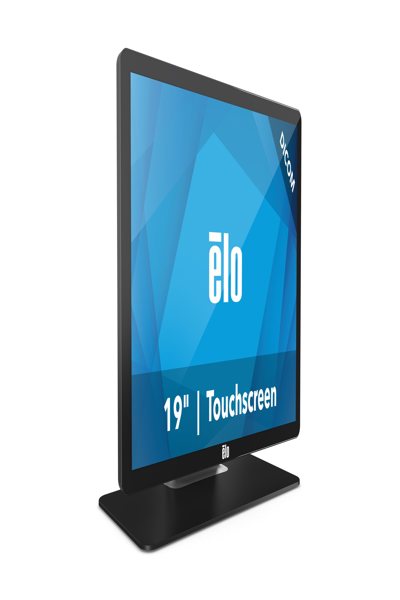

Elo Touch Solutions Touch Solutions Elo Solution 1903LM - 19 inches - 235 cd/m - TFT - Flat Screen - 48.3 cm
14 ms - 1,000:1 - 235 cd/m² - TFT - HDMI - VGA - HDMI Input
Brand: Elo Touch Solutions
SKU: E349829
$923.88
Price as listed. Shipping charges calculated at checkout.
In stock
Do you have any question about this product or its specs? Want to know more? Click here to contact our pre-sales consultant and make the right purchase.
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Display Type
LCD monitor / TFT active matrix
Diagonal Size
19"
Built-in Devices
USB Hub
Aspect Ratio
5:4
Native Resolution
1280 x 1024 at 60 Hz
Brightness
250 cd/m²
Brightness w/touchscreen
235 cd/m²
Contrast Ratio
1000:1
Colour Support
16.7 million colours
Response Time
14 ms (tr - tf)
Vertical Refresh Rate
50 - 75 Hz
Horizontal Refresh Rate
30 - 82 kHz
Horizontal Viewing Angle
+89 / -89
Vertical Viewing Angle
+89 / -89
OSD Languages
Chinese (traditional), Chinese (simplified), English, German, French, Italian, Russian, Spanish, Japanese, Korean
Features
TouchPro technology
Colour
Black
Dimensions (WxDxH)
42.96 cm x 19.34 cm x 39.77 cm - with stand
Weight
6.3 kg
Audio
Type
Speakers - stereo
Output Power / Channel
2 Watt
Input
Type
Touch-screen - touchscreen
Movement Detection Technology
Projected capacitive
Connectivity
Interfaces
HDMI
VGA
Audio line-out (mini-jack)
USB (Type B)
USB 2.0 (Type A)
4 x Micro-USB
Mechanical
VESA Mounting Interface
100 x 100 mm
Miscellaneous
Included Accessories
3 cable ties
Cables Included
1 x VGA cable
1 x HDMI cable
1 x USB cable
1 x audio cable
MTBF
50,000 hours
Compliant Standards
UL, VCCI, BSMI, cUL, CB, CCC, IC, FCC, KCC, IP54, IEC 60601-1, ISO 14971, EAC, RCM, ANSI/AAMI ES60601-1, IEC60601-1:2005 + A1:2012, CoC, CAN/CSA C22.2 No. 60601-1:14
Localisation
Worldwide
Power
Input Voltage
AC 120/230 V (50/60 Hz)
Power Consumption (Typical)
18 Watt
Power Consumption Sleep
0.8 Watt
Dimensions & Weight (Shipping)
Shipping Width
48.2 cm
Shipping Depth
26 cm
Shipping Height
52.7 cm
Shipping Weight
9.8 kg
Manufacturer Warranty
Service & Support
Limited warranty - 3 years
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Humidity Range Operating
20 - 80% (non-condensing)
Ident
Manufacturer ID
E349829
EAN/UPC
0815335026317
