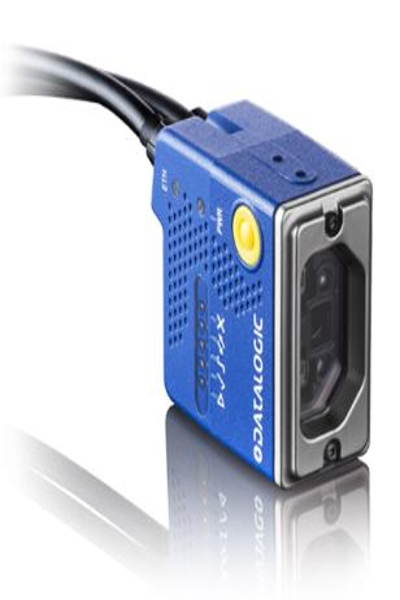

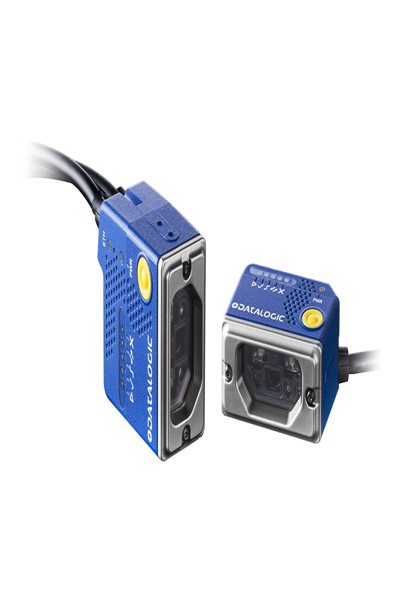

Datalogic Matrix 120 210-011 - Fixed bar code reader - 1D/2D - CMOS - Planet - POSTNET - Aztec Code - Data Matrix - MaxiCode - Micro QR Code - QR Code - 752 x 480 pixels
sensor with Global Shutter - 128MB - 5-30 VDC - 1.6-2.4W - IP65 - Blue
Brand: Datalogic
SKU: 937800003
$1,835.96
Price as listed. Shipping charges calculated at checkout.
In stock
Do you have any question about this product or its specs? Want to know more? Click here to contact our pre-sales consultant and make the right purchase.
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Type
Barcode scanner - desktop - stationary
Barcode
Interface Type
RS-232/422, Ethernet 100, Ethernet
Scan Element Type
CMOS
Sensor Resolution
752 x 480
Scan Mode
Fixed projection
Frame Rate
57 frames / sec
Max Working Distance
19 cm
Decode Capability
Aztec code, Data Matrix, Japanese Post, MaxiCode, Micro QR code, PLANET, Postnet, QR code, Royal Mail, DotCode, DWCODE
TTL Decoding
Decoded
Connectivity Technology
Wired
Features
X-PRESS interface, Green Spot technology, programmable, ESD (electrostatic discharge) safe
Expansion / Connectivity
Interfaces
1 x RS-232/422
1 x Ethernet
Miscellaneous
Compliant Standards
IP65
Power
Voltage
DC 5 - 30 V
Power Consumption Operational
2.4 Watt
Dimensions & Weight
Width
4.54 cm
Depth
3.11 cm
Height
2.35 cm
Weight
117 g
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
45 °C
Ident
Manufacturer ID
937800003
Datalogic Matrix 120 210-011 - Fixed bar code reader - 1D/2D - CMOS - Planet - POSTNET - Aztec Code - Data Matrix - MaxiCode - Micro QR Code - QR Code - 752 x 480 pixels - sensor with Global Shutter - 128MB - 5-30 VDC - 1.6-2.4W - IP65 - Blue
