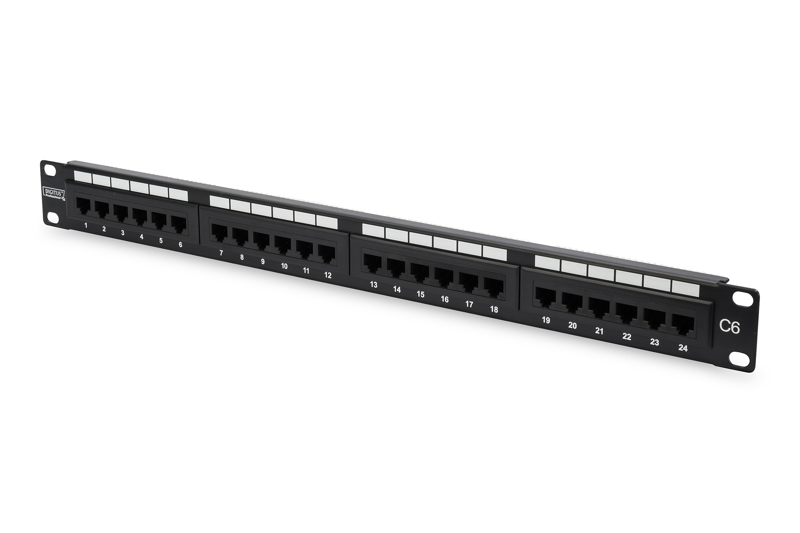

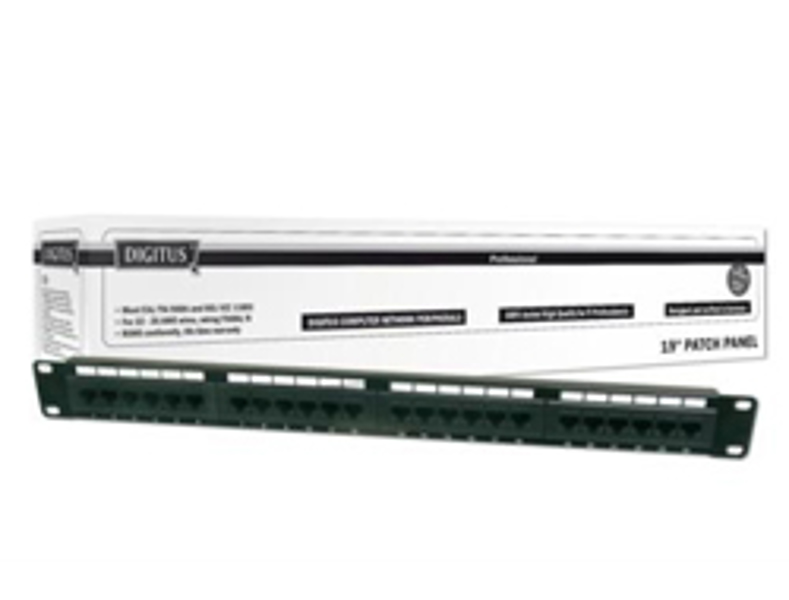

DIGITUS Patch Panel Cat6 24-Port
patch panel
Brand: DIGITUS
SKU: DN-91624U
$83.88
Price as listed. Shipping charges calculated at checkout.
In stock
Do you have any question about this product or its specs? Want to know more? Click here to contact our pre-sales consultant and make the right purchase.
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Connector(s)
RJ-45
Cable types supported
Cat6
Product colour
Black
Mounting
Rack mounting
Rack capacity
1U
Package width
560 mm
Package depth
80 mm
Package weight
646 g
Country of origin
China
Digitus CAT 6, Class E Patch Panel. Connector(s): RJ-45, Cable types supported: Cat6. Product colour: Black, Mounting: Rack mounting, Rack capacity: 1U. Package width: 560 mm, Package depth: 80 mm, Package weight: 646 g. Country of origin: China
| Estimate Gross Weight | 0.65 |
|---|
https://www.digitus.info/
The unshielded CAT 6 Patch Panel from DIGITUS® is available as 16- or 24-port (1 Hight unit) or 48-port version (2 Hight units). It is manufactured acc. to Link Performance Class E, for up to 250 MHz, EN 50173 and ISO/IEC 11801. It is UL certified. The housing is made of 1.5 mm galvanized cold-rolled steel is is therefore perfectly suitable for19" rack mounting.
The unshielded CAT 6 Patch Panel from DIGITUS® is available as 16- or 24-port (1 Hight unit) or 48-port version (2 Hight units). It is manufactured acc. to Link Performance Class E, for up to 250 MHz, EN 50173 and ISO/IEC 11801. It is UL certified. The housing is made of 1.5 mm galvanized cold-rolled steel is is therefore perfectly suitable for19" rack mounting.
- Transmission properties: Category 6
- Housing material: 1.5 mm galvanic cold rolled steel, acc. to EN1.4301, UNS S30400, AISI 304 and LMSAD110
- RJ45 female material: ABS UL 94V-0
- RJ45 female contact: Tinned phosphor bronze, 0.5 ? gold-plated contact
- RJ45 shielding: Tinned bronze
- LSA termination clamp: Krone LSA+, UL 94V-2, zinc plated phosphor bronze
- Ground wire: Not included
- Conductor plate: FR4, UL 94V-0
- Physical properties:
- Insertion force: 30N max. (IEC 60603-7-5)
- Retention strength: 7.7 kg between jack and plug
- Area of application: Up to 250 MHz, 1GBase-T, PoE
- Operation temperature: -20┬░ C to +70 ┬░C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
- Mating cycles female: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
- Clamp: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
- IDC wire size: 22 ΓÇô 26 AWG solid and stranded conductor
- Insulation resistance: > 500 MOhm
- Contact resistance: < 20 MilliOhm
- Dielectric strength: 1000 VDC (Contact/Contact), 1500 VDC (Contact/Ground)
- Norms: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
- General properties:
- Suitable for 483 mm (19") cabinet mounting
- RJ45 female, 8P8C

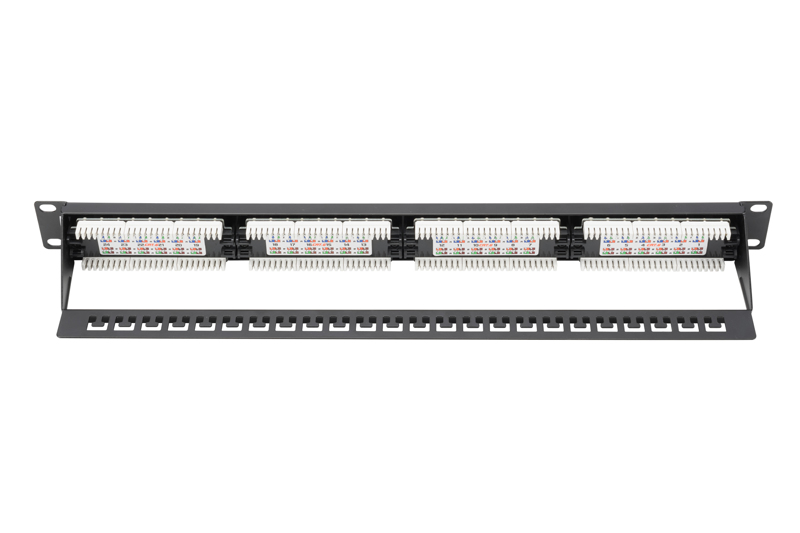

- Cable installation via LSA strips, color coded according to EIA/TIA 568 A & B
- Cable fixing with smart cable ties
- Mechanical properties:
