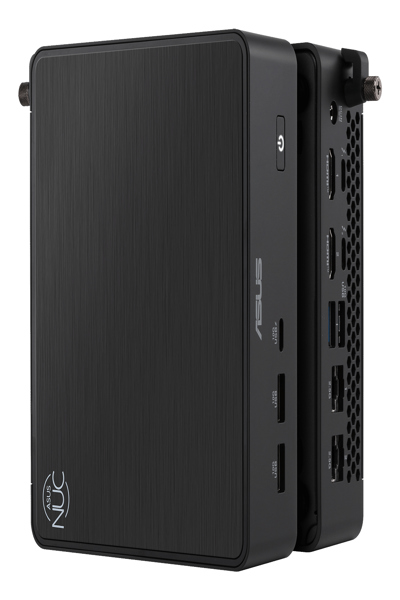

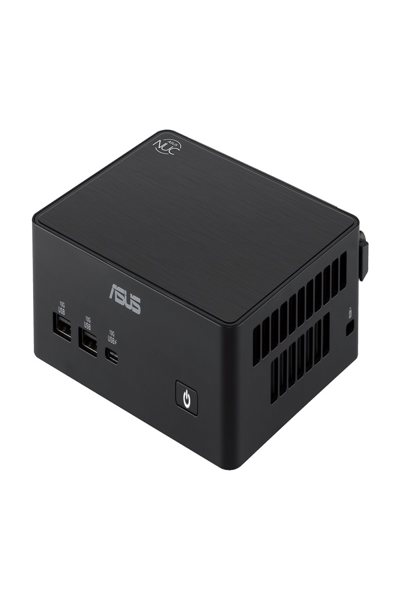

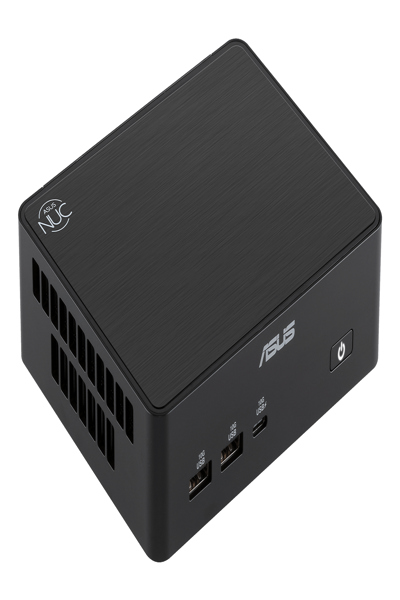

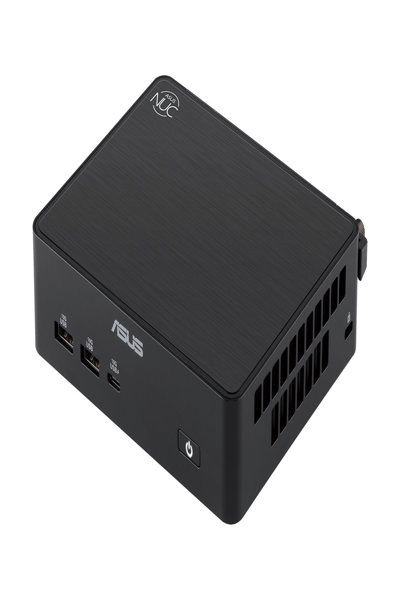

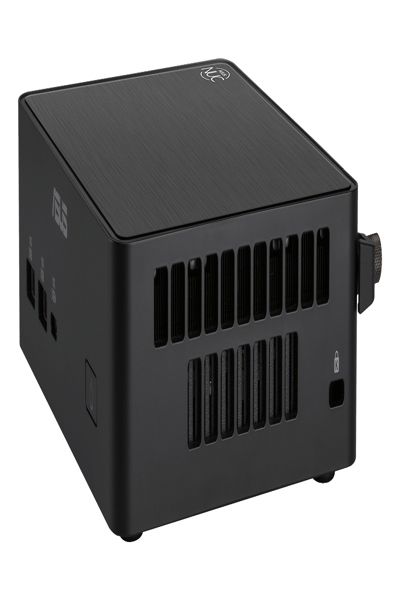

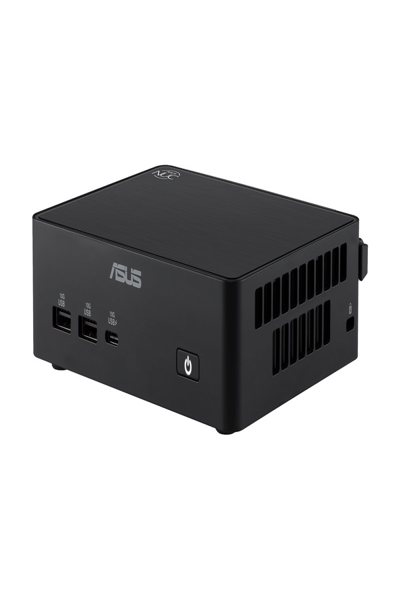

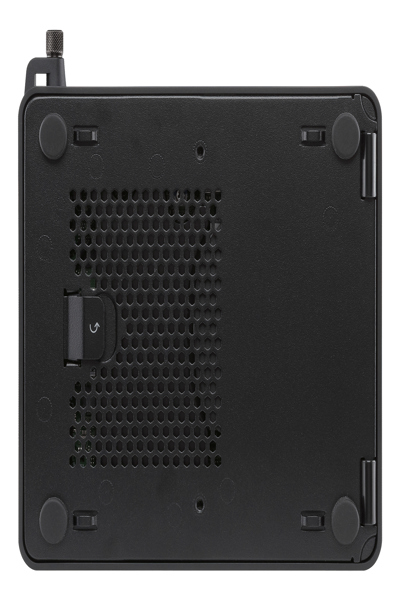

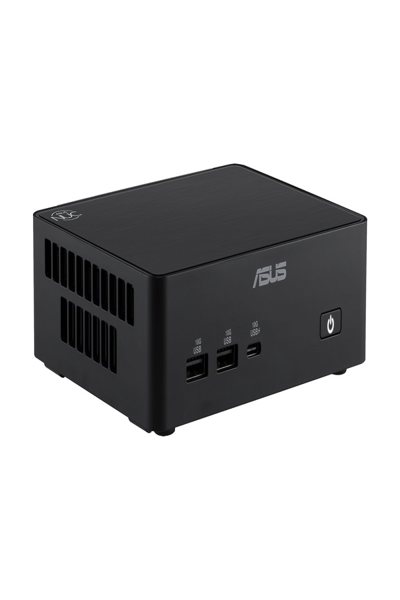

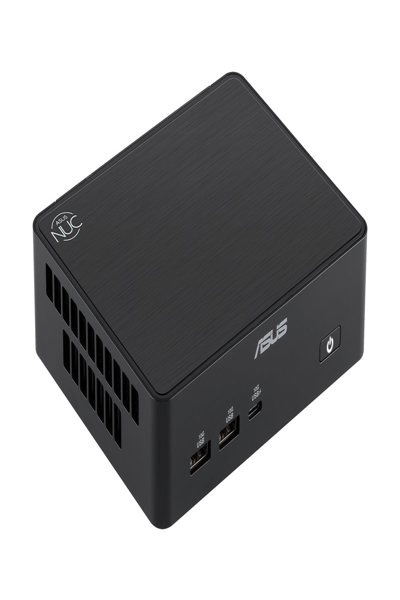

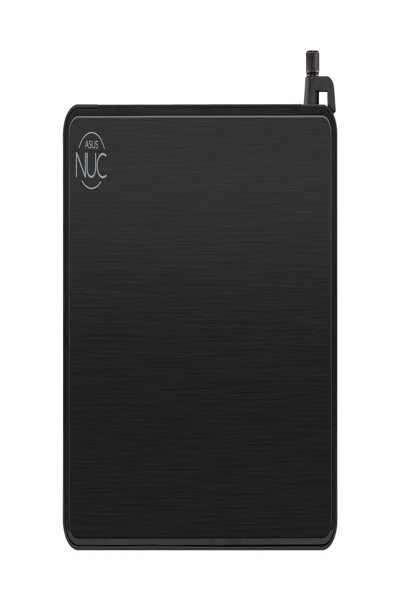

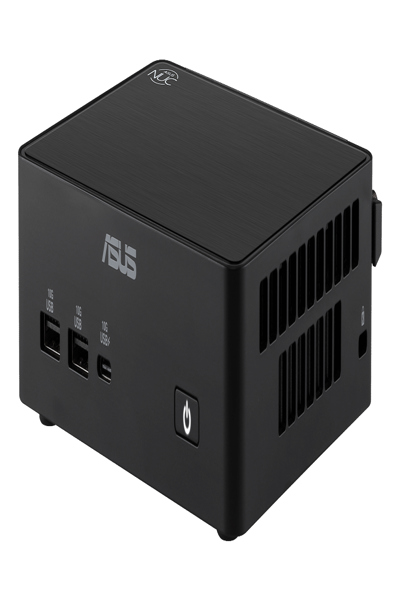

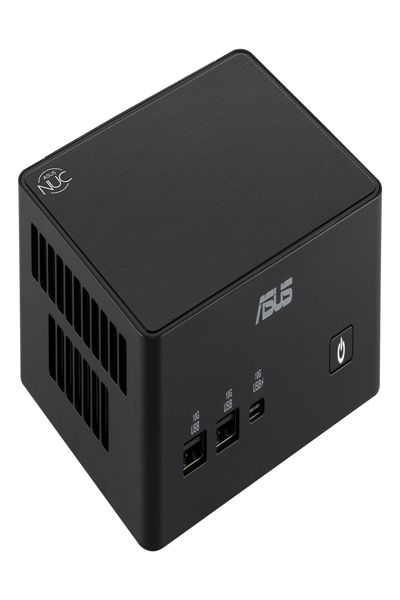

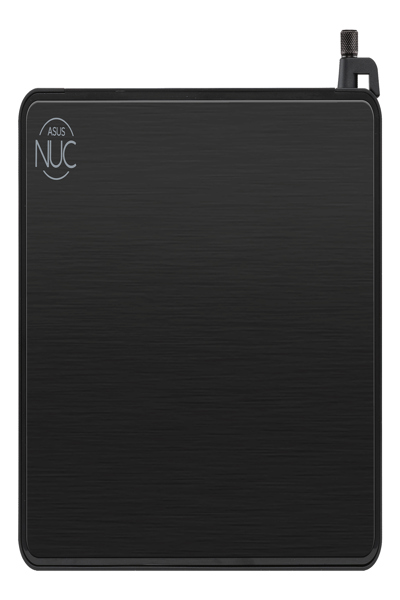

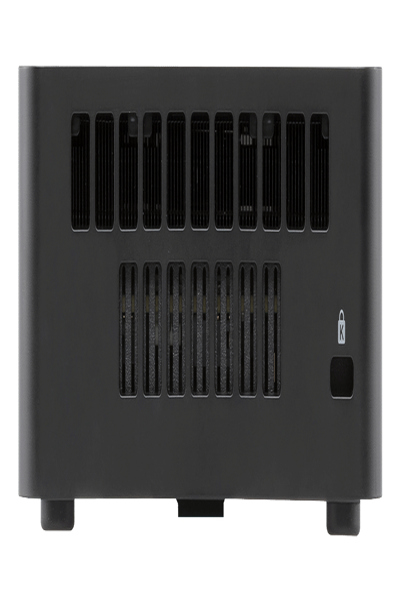

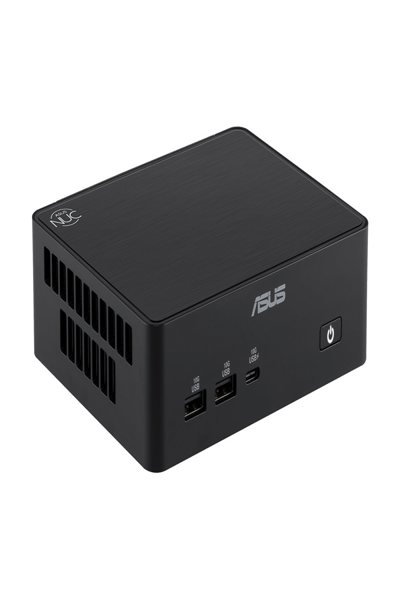

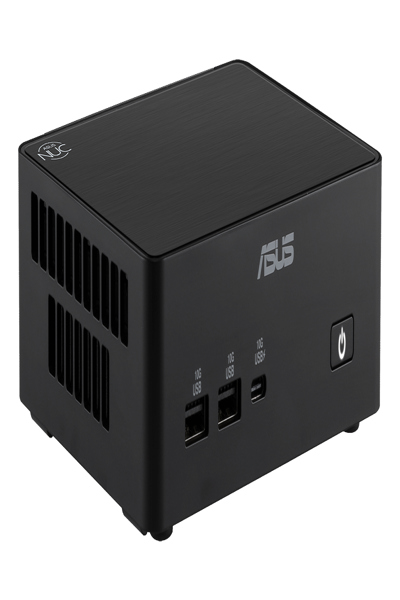

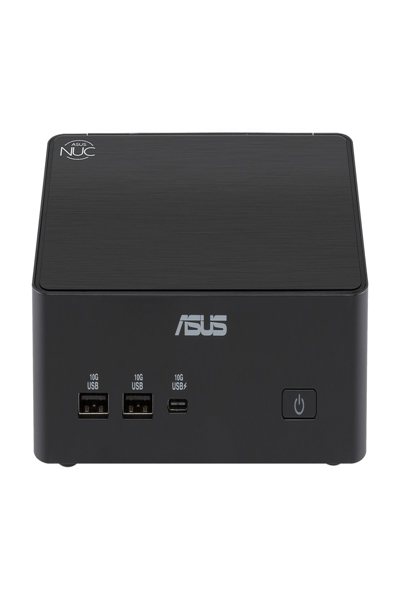

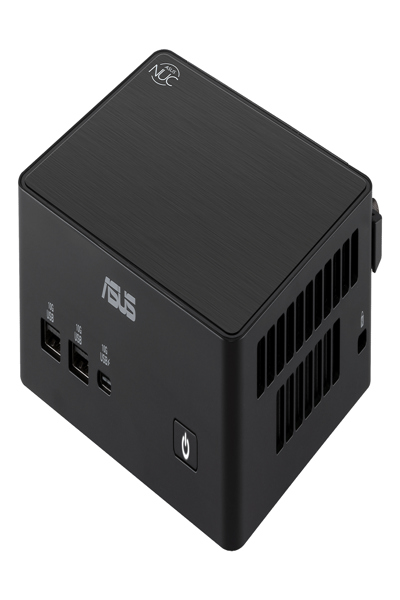

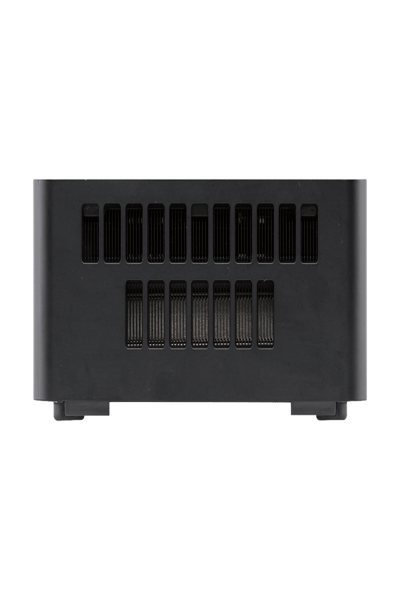

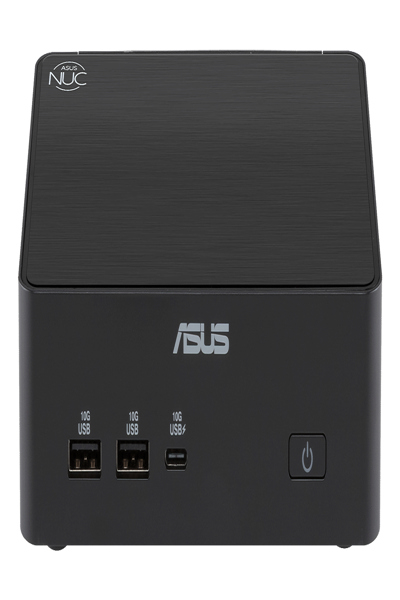

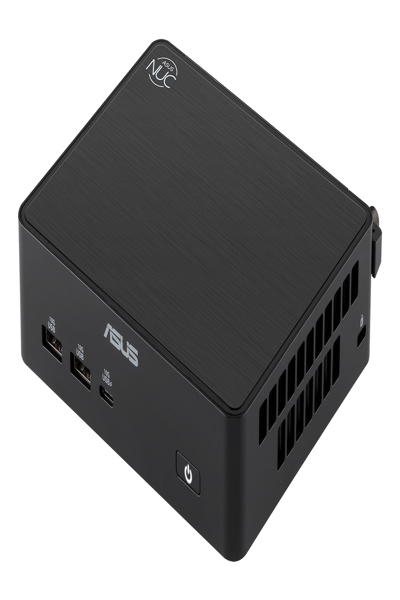

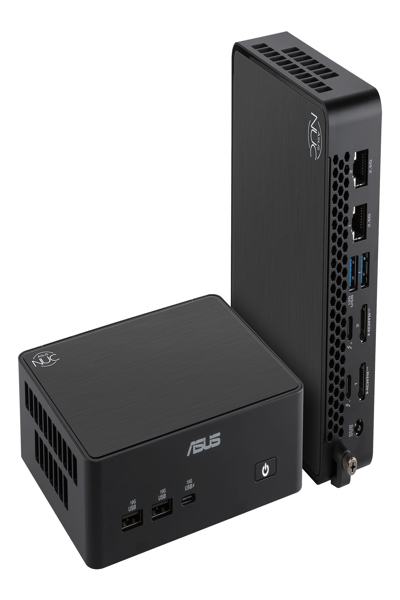

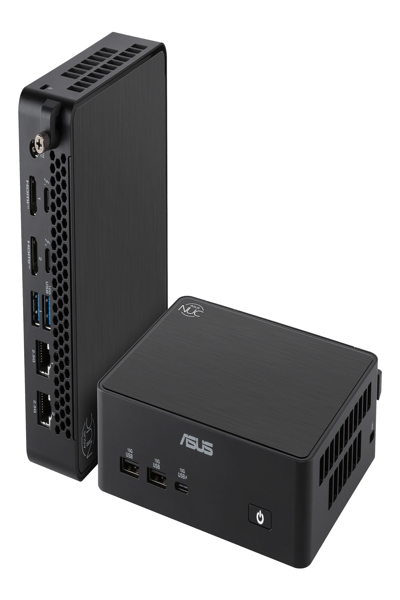

ASUS Nuc NUC16GDKX76C002 UX7 358H - Barebone - Bluetooth
Ethernet - HDMI
Brand: ASUS
SKU: 90AR00W2-M001D0
$1,835.88
Price as listed. Shipping charges calculated at checkout.
In stock
Do you have any question about this product or its specs? Want to know more? Click here to contact our pre-sales consultant and make the right purchase.
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Type
PC barebone
Product Form Factor
Mini PC
Embedded Security
Firmware Trusted Platform Module (TPM 2.0) Security Chip
Colour
Black
Processor / Chipset
CPU
Intel Core Ultra X7 (Series 3) 358H
Clock Speed
1.9 GHz (P-core) / 1.5 GHz (E-core)
Max Turbo Speed
4.8 GHz (P-core) / 3.5 GHz (E-core)
Number of Cores
16-core
CPU Qty
1
Max CPU Qty
1
Processor Main Features
Intel Smart Cache
Neural Processor Unit (NPU)
NPU Performance Up To (TOPS)
50 TOPS
AI Datatype Support on NPU
INT8
AI Software Frameworks Supported by NPU
DirectML, OpenVINO, WebNN, WindowsML, ONNX RT
Windows Studio Effects Support
Yes
Cache Memory
Installed Size
18 MB
Cache Per Processor
18 MB
RAM
Installed Size
0 GB (installed) / 128 GB (max)
Technology
DDR5 SDRAM
Form Factor
CSO-DIMM 262-pin
Slots
2 (Total) / 2 (empty)
Hard Drive
Type
No HDD
Optical Storage
Type
No optical drive
Monitor
Monitor Type
None.
Graphics Controller
Graphics Processor
Intel Arc B390 - up to 122 TOPS
Video Interfaces
HDMI, USB-C
Max Monitors Supported
4
Networking
Ethernet Ports
2 x 2.5 Gigabit Ethernet
Wireless LAN Supported
Yes
Data Link Protocol
IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax (Wi-Fi 6), IEEE 802.11b, IEEE 802.11be (Wi-Fi 7), IEEE 802.11g, IEEE 802.11n, 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet, Ethernet
Expansion / Connectivity
Slots

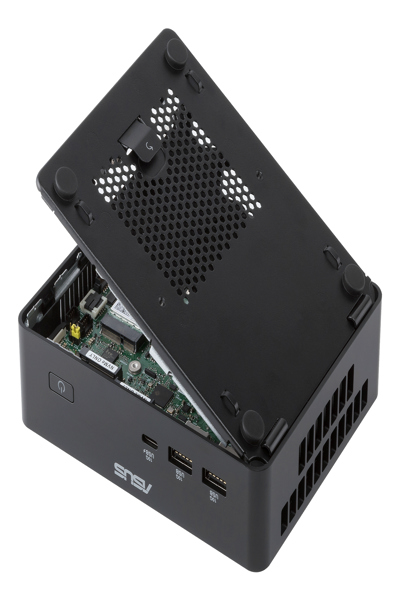

2 (total) / 2 (free) x M.2 Card - 2280 (for internal storage)

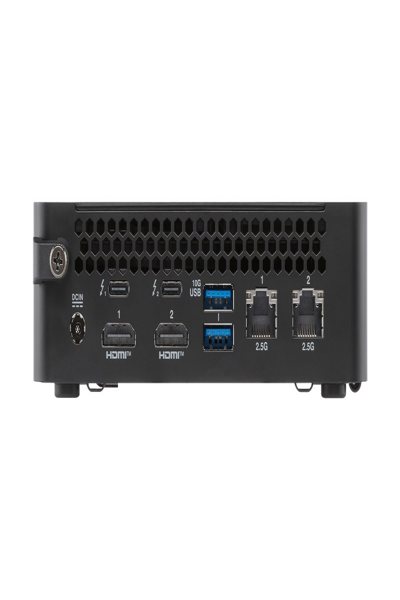

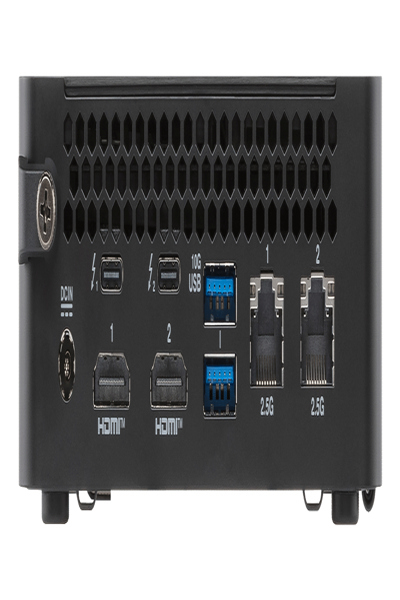

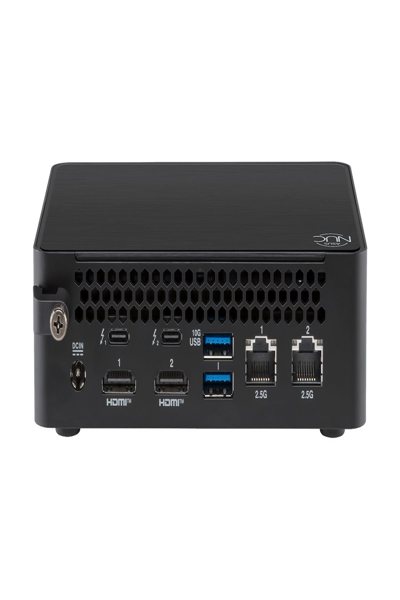

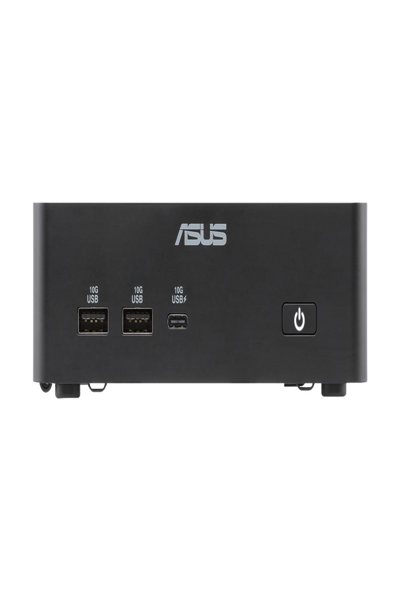

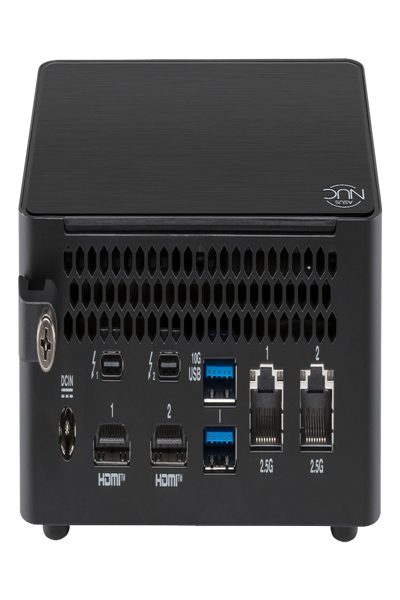

Interfaces

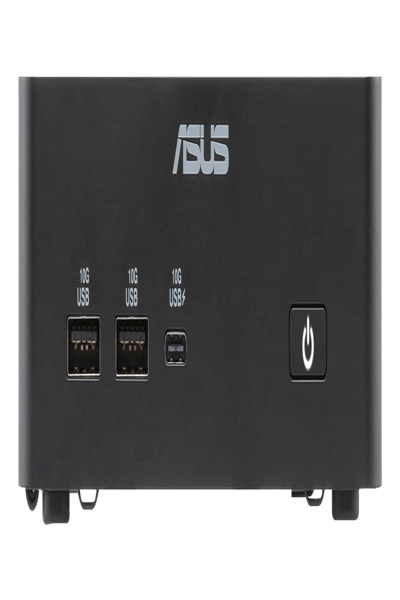

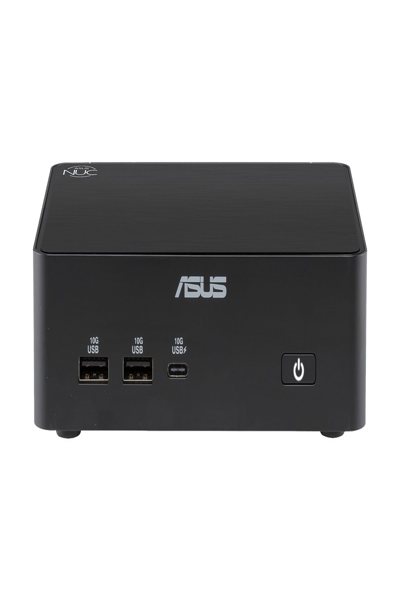

4 x USB 3.2 Gen 2 (2 front, 2 rear)
1 x USB-C 3.2 Gen 2 (1 front)
2 x HDMI (2 rear)
2 x LAN (2.5Gigabit Ethernet) - RJ-45 (2 rear)
2 x Thunderbolt 4 (2 rear)
Miscellaneous

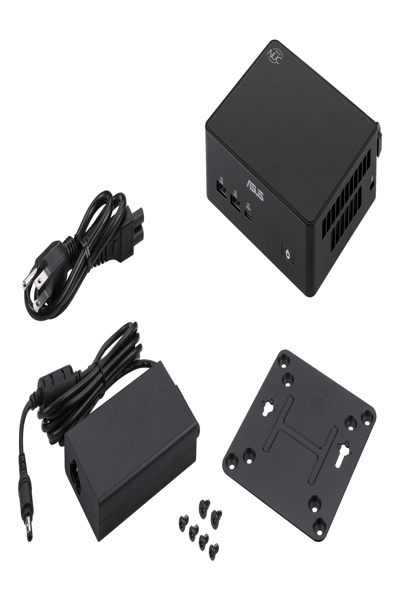

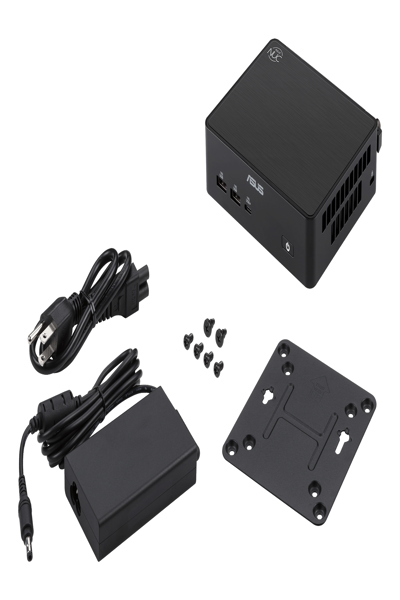

Included Accessories
VESA mounting kit, power adapter, power cable

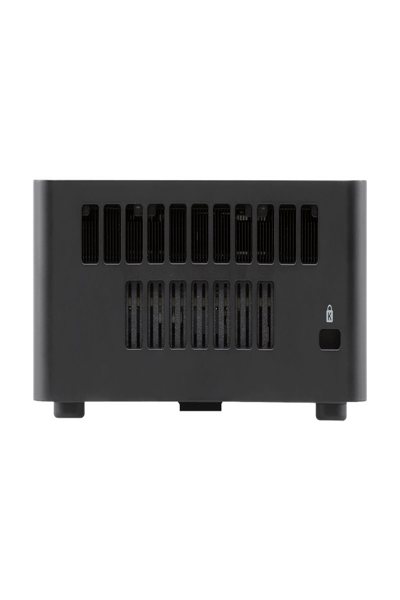

Theft/Intrusion Protection
Security lock slot (cable lock sold separately)
Security Slot Type
Kensington security slot

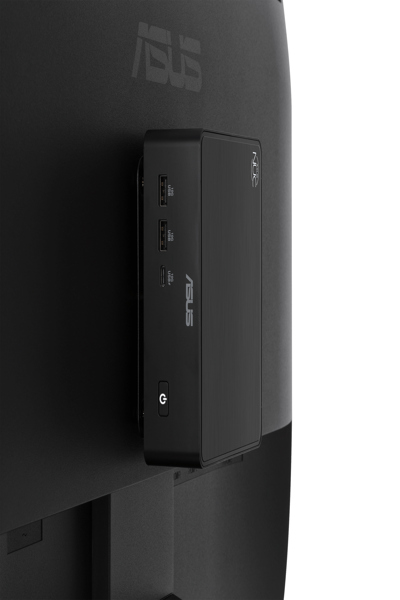

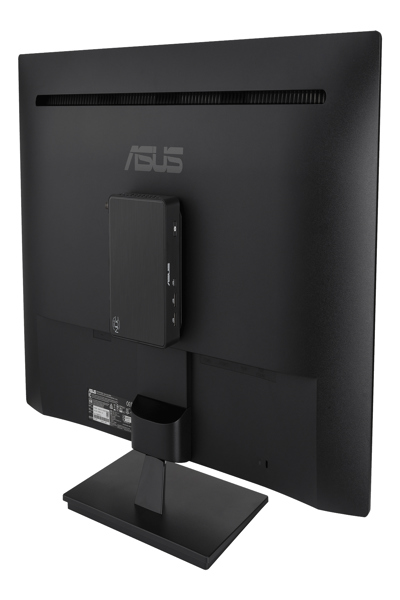

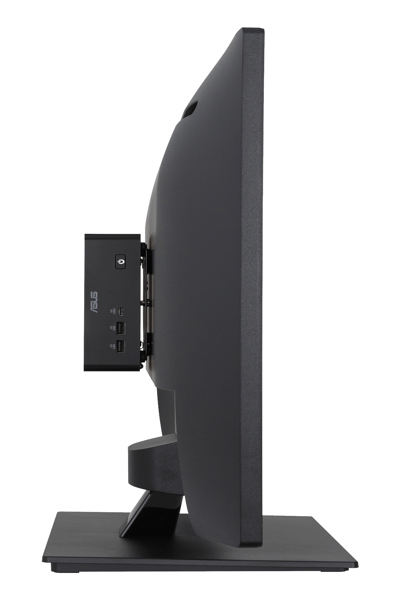

VESA Mounting Interface
Yes
Power
Device Type
Power adapter
Operating System / Software
OS Provided
No operating system
Microsoft Copilot
Yes
Dimensions & Weight
Width
14.4 cm
Depth
11.7 cm
Height
4.2 cm
Weight
910 g
Environmental Parameters
Min Operating Temperature
0 °C
Max Operating Temperature
40 °C
Ident
Manufacturer ID
90AR00W2-M001D0
EAN/UPC
4711636528085
ASUS Nuc NUC16GDKX76C002 UX7 358H - Barebone - Bluetooth - Ethernet - HDMI
