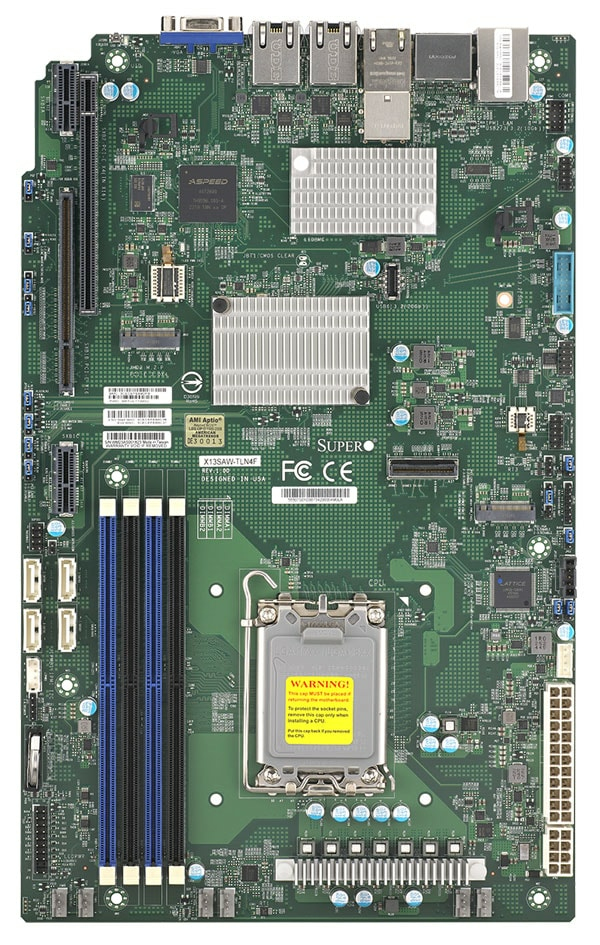

Supermicro MBD-X13SAW-TLN4F, Intel, Intel® Celeron®, Intel Core i3 12th Gen
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
Technical data
Processor
Processor manufacturer
Intel
Compatible processor series
Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Itanium®
Processor cores
24
Memory
Supported memory types
DDR5-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Memory voltage
1.1 V
ECC ?ompatibility
ECC & Non-ECC
Supported memory clock speeds
3600,4000,4400 MHz
Maximum internal memory
128 GB
Supported memory module capacities
4GB, 8GB, 16GB, 32GB
Features
Component for
Server
Motherboard form factor
WIO
Motherboard chipset family
Intel
Motherboard chipset
Intel R680E
Rear panel I/O ports
USB 2.0 ports quantity
2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Ethernet LAN (RJ-45) ports
4
VGA (D-Sub) ports quantity
1
DisplayPorts quantity
2
Serial ports quantity
1
Internal I/O
Number of SATA III connectors
4
TPM connector
Yes
Serial port headers
1
Storage controllers
Supported storage drive interfaces
M.2, PCI Express 4.0, PCI Express 5.0, SATA III
Network
Ethernet LAN
Yes
Ethernet interface type
10 Gigabit Ethernet
LAN controller
Intel® X550
BIOS
BIOS type
UEFI AMI
ACPI version
5.1
System Management BIOS (SMBIOS) version
3.0
Weight & dimensions
Width
203.2 mm
Depth
330.2 mm
Operational conditions
Storage temperature (T-T)
-40 - 85 °C
Operating temperature (T-T)
0 - 60 °C
Operating relative humidity (H-H)
10 - 85 %
Storage relative humidity (H-H)
10 - 95 %
Supermicro MBD-X13SAW-TLN4F. Processor manufacturer: Intel, Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i5 12th Gen, Intel.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III. Ethernet interface type: 10 Gigabit Ethernet, LAN controller: Intel® X550. Component for: Server, Motherboard form factor: WIO, Motherboard chipset family: Intel
Supermicro MBD-X13SAW-TLN4F, Intel, Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i5 12th Gen, Intel..., DDR5-SDRAM, 128 GB, DIMM, 1.1 V
