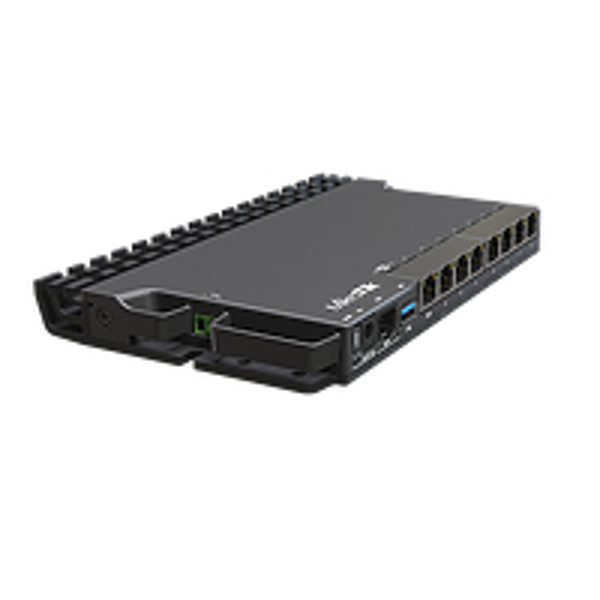

MikroTik Router RB5009UG+S+IN - Network
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
| Networking standards | IEEE 802.3af,IEEE 802.3at |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Mean time between failures (MTBF) | 200000 h |
| Certification | CE, EAC, ROHS |
| Product colour | Black |
| Power consumption (typical) | 20 W |
| Power source type | DC |
Mikrotik RB5009UG+S+IN. Networking standards: IEEE 802.3af,IEEE 802.3at, Ethernet interface type: 2.5 Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s. USB version: 3.2 Gen 1 (3.1 Gen 1). Mean time between failures (MTBF): 200000 h, Certification: CE, EAC, ROHS. Product colour: Black. Power consumption (typical): 20 W, Power source type: DC
MikroTik created the perfect home lab router: compact, powerful, with multiple powering solutions and efficient cooling. RB5009 has it all, and even more!
The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board - so the case acts as a massive heat-sink!
RB5009UG+S+IN can be powered in 3 different ways: PoE-in from Ethernet port, DC jack, 2-pin terminal on the side.
Boards offer large DDR4 RAM and NAND storage. This combination of ports and components, compared to the other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.
You can mount four of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.
Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!
The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board – so the case acts as a massive heat-sink!
RB5009UG+S+IN can be powered in 3 different ways:
a) PoE-in from Ethernet port #1
b) DC Jack
c) 2-pin terminal on the side
Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.
With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.
| Estimate Gross Weight | 1.5 |
|---|
Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!
The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board ΓÇô so the case acts as a massive heat-sink!
RB5009UG+S+IN can be powered in 3 different ways:
a) PoE-in from Ethernet port #1
b) DC Jack
c) 2-pin terminal on the side
Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.
With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.
