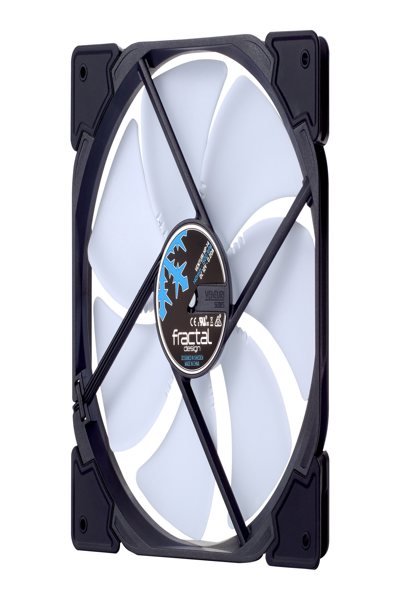

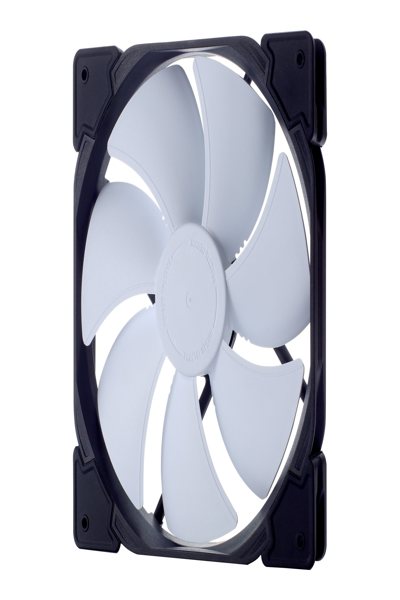

Fractal Design Venturi Series HP-14 PWM Fan
Fractal Design Venturi Series HP-14 PWM - Case Fan - 140mm - Black, White
Brand: Fractal Design
SKU: FD-FAN-VENT-HP14-PWM-WT
$0.00
Price as listed. Shipping charges calculated at checkout.
Out of stock
Do you have any question about this product or its specs? Want to know more? Click here to contact our pre-sales consultant and make the right purchase.
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Type
Fan
Fan diameter
14 cm
Rotational speed (min)
400 RPM
Rotational speed (max)
1500 RPM
Noise level (low speed)
10 dB
Noise level (high speed)
30.1 dB
Maximum airflow
78.1 cfm
Airflow
132.7 m³/h
Minimum air pressure
0.54 mmH2O
Maximum air pressure
1.94 mmH2O
Bearing type
Fluid Dynamic Bearing (FDB)
Voltage
12 V
Width
140 mm
Depth
25 mm
Height
140 mm
Fractal Design Venturi HP-14 PWM. Type: Fan, Fan diameter: 14 cm, Rotation speed (min): 400 RPM, Rotation speed (max): 1500 RPM, Noise level (low speed): 10 dB, Noise level (high speed): 30.1 dB, Maximum air flow : 78, 1 cfm, Air flow: 132.7 m³/h, Minimum air pressure: 0.54 mmH2O, Maximum air pressure: 1.94 mmH2O, Bearing type: Fluid Dynamic Bearing (FDB). Voltage: 12 V. Width: 140 mm, Depth: 25 mm, Height: 140 mm
| Estimate Gross Weight | 0.293 |
|---|
0.0
0 review(s)
