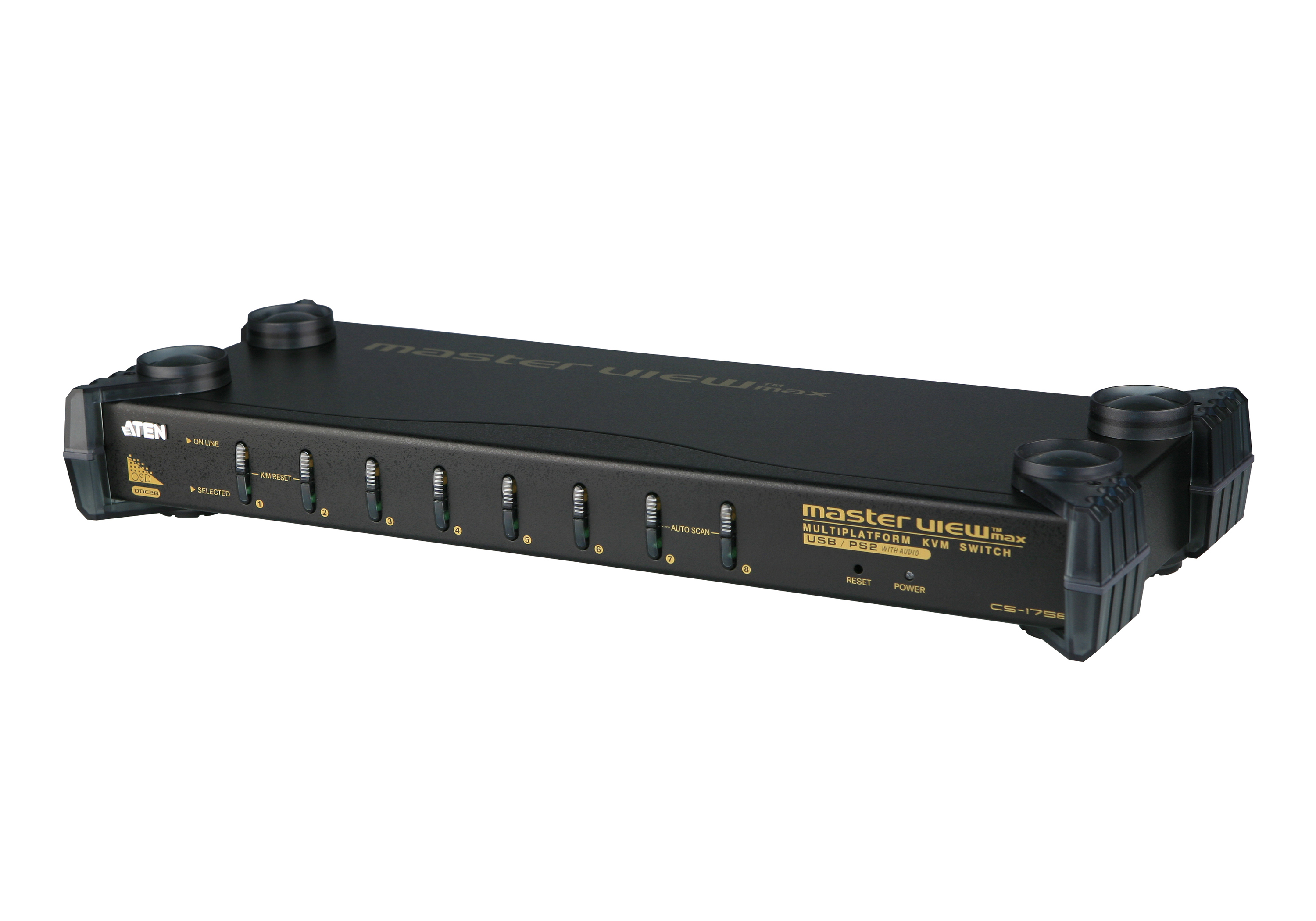

ATEN Master View max CS-1758 - KVM / sound switch
ATEN Master View max CS-1758 - KVM / audio switch - 8 x KVM / audio - 1 local user - desktop
Brand: ATEN
SKU: CS1758
$0.00
Price as listed. Shipping charges calculated at checkout.
Out of stock
Do you have any question about this product or its specs? Want to know more? Click here to contact our pre-sales consultant and make the right purchase.
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Keyboard port type
USB
Mouse port type
USB
Video port type
VGA
HD type
QXGA
Maximum resolution
2048 x 1536 pixels
Scan interval
1,3,4,5,8,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99,100,240,250,255 s
Product colour
White
Housing material
Metal
Country of origin
Taiwan
DC input voltage
5 V
Power consumption (typical)
2.32 W
Width
161 mm
Depth
437.2 mm
Height
44 mm
ATEN CS1758. Keyboard port type: USB, Mouse port type: USB, Video port type: VGA. HD type: QXGA, Maximum resolution: 2048 x 1536 pixels, Scan interval: 1,3,4,5,8,10,15,20,25,30,35,40,45,50,55,60,70,80,90,99,100,240,250,255 s. Product colour: White, Housing material: Metal, Country of origin: Taiwan. DC input voltage: 5 V, Power consumption (typical): 2.32 W. Width: 161 mm, Depth: 437.2 mm, Height: 44 mm
| Estimate Gross Weight | 3.5 |
|---|
https://www.aten.com/global/en/products/kvm/rack-kvm-switches/cs1758/#.WfwqCXBwklQ
CS1758 is a KVM Switch with 8 ports and supports computers with PS/2 or USB interfaces via cables and audio signal function. Moreover, it supports 3-tier connection via cascade. With 73 sets of CS1758, users can control 512 computers. CS1758 provides growing enterprises a reliable investment on comprehensive connection and long-term safe use.
CS1758 is a KVM Switch with 8 ports and supports computers with PS/2 or USB interfaces via cables and audio signal function. Moreover, it supports 3-tier connection via cascade. With 73 sets of CS1758, users can control 512 computers. CS1758 provides growing enterprises a reliable investment on comprehensive connection and long-term safe use.
- One USB console controls 8 computers.
- With speaker and microphone support.
- ATEN USB ASIC inside.
- Available in silver and black.
- Rack mountable in 19" system rack.
- Multiplatform support: Windows 2000/XP/Vista, Linux, Mac, Unix, Sun and FreeBSD.
- For more information about KVMs which can connect to CS1758, see Compatible KVM Table.
- Cascadable up to 3 levels - provides up to 512 computers.
- Dual interface supports with computers with PS/2 or USB keyboards and mice.
- Multiplatform support: compatible with all operation platforms PC (Windows,Linux and most others), Mac and Sun.
- Auto PS/2 and USB interface detection.
- Buzzer On/Off via hotkey and OSD.
- Computer selection via front panel pushbuttons, hotkeys and OSD.
- Superior video quality - up to 2048 x 1536; DDC2B.
- Firmware upgradable.
