MikroTik CCR1009-7G-1C-PC Cloud Core Router
NOTE: The information below is provided for your convenience only; the accuracy of the specifications cannot be guaranteed. However, if necessary, please check with us before purchasing. Data provided by 1 World Sync.
General
Ethernet LAN
Y
Ethernet LAN data rates
10,100,1000 Mbit/s
Processor frequency
1000 MHz
Minimum RAM
1024 MB
Product colour
White
Power consumption (typical)
25 W
Power source type
AC, DC
AC input voltage
100 - 240 V
Width
272 mm
Depth
190 mm
Height
47 mm
Mikrotik CCR1009-7G-1C-PC. Ethernet LAN data rates: 10,100,1000 Mbit/s. Processor frequency: 1000 MHz, Minimum RAM: 1024 MB. Product colour: White. Power consumption (typical): 25 W, Power source type: AC, DC, AC input voltage: 100 - 240 V. Width: 272 mm, Depth: 190 mm, Height: 47 mm
| Estimate Gross Weight | 3.0 |
|---|
The new updated revision of CCR1009 is here. We attempted to combine all the customer feedback and best practice in CCR device manufacturing that we learned over the last three years, since the first CCR1009 devices were launched.
No switch-chip - the device now features only fully independent Ethernet ports each with a direct connection to the CPU, allowing to overcome previous shared 1Gbit limitation from switch-chip ports and utilize full potential of CPU processing power on those ports.
Combo-port - a single 1Gbit software interface that has two hardware interfaces - an SFP cage and a Gigabit Ethernet port, allowing you to use any type of connection available to you. It is also possible to switch between both physical interfaces in RouterOS. In an event of disconnect the combo-port provides hardware fail-over feature.
100Mbps SFP support - this is our first device that supports 100BASE-LX/100BASE-SX/100BASE-BX fiber modules, as well as standard 1.25G SFP modules.
More throughput - because the ports are now directly connected to the CPU, the new CCR1009 can achieve even higher throughput.

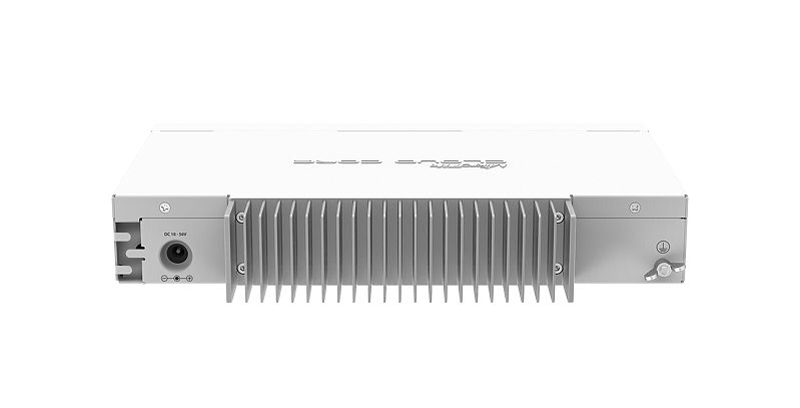

This unit is equipped with passive cooling enclosure, two heat-pipes and a specially designed heat-sink, so its completely silent. ItΓÇÖs powered by an external 24V 2.5A AC/DC adapter and supports power redundancy if you also power it from the PoE input port.
